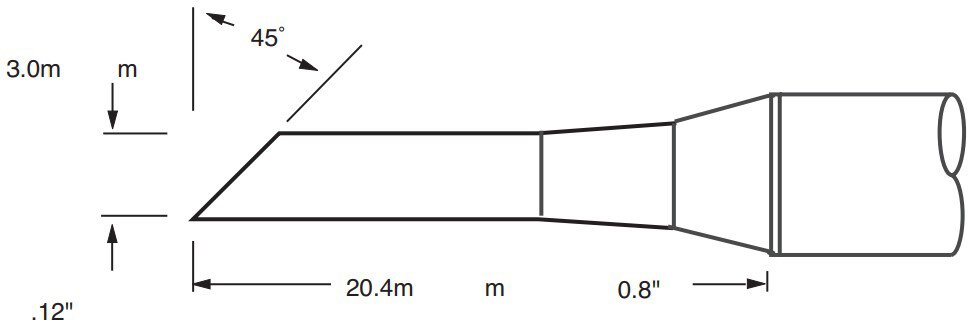

Soldering tip SxV series, hoof-shaped, long 45°, 3 x 20.4 mm
SxV-Solder Tips are the standard soldering tip range for the Metcal PS-900/MFR1100, MFR-2210, MFR-1351-series soldering systems. The temperature/series is designated by the first digit following the dash in the part number. The SFV-series are nominally 390 ˚C. Metcal recommends the SFV-series for the majority of applications. However, thefamily also offer a higher temperature serie designated SCV, nominally 450 ˚C, for high temperature and thermally demanding applications. STV-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
• for temperature sensitive applications
• suitable for the handpieces of PS and MFR systems
• for temperature sensitive applications
• suitable for the handpieces of PS and MFR systems
| Item no. | WL27853 |
| Model | STV-DRH430AR |
| Manufacturer | OKI |
| Manufacturer article no. | STV-DRH430AR |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Product series | SxV Series |
| Temperature (max.) | 366 °C |
| Tip series | SxV |
| Angle (soldering tip) | 45 ° |
| Tip length | 20.4 mm |
| Tip width | 3 mm |
| Soldering tip diameter | 3 mm |
| Tip shape | hoof-shaped |
| Tip alignment | straight |
| Tip temperature | 365 °C |
| ESD compliant | no |
| GPSR manufacturer data | OK International Ltd Eagle Close, Chandlers Ford GB-SO53 4NF Hampshire www.ok-international.com |
CHF 24.95
Available soon
Item No.WL27853
