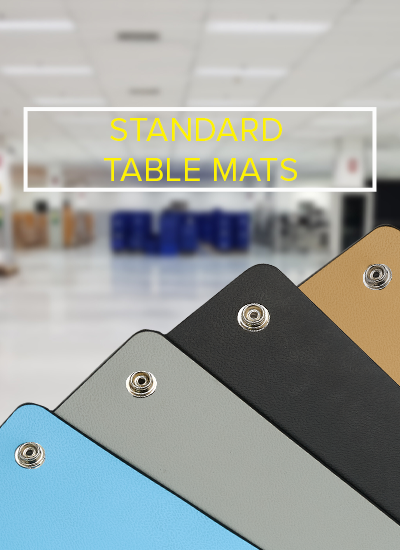

Premium ESD table mats from SafeGuard

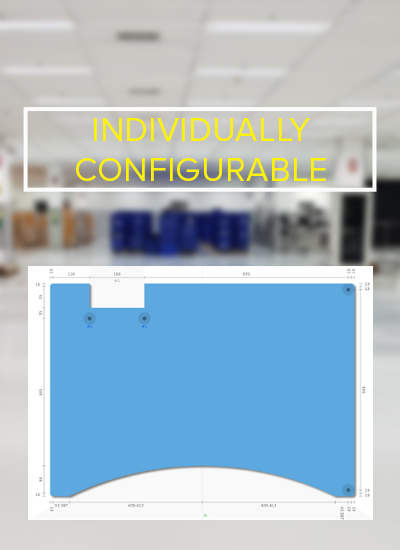

SafeGuard ESD table mats provide a reliable basis for electrostatically protected work areas and protect sensitive components from damage in the long term thanks to their specialised two-layer structure. The robust, elastic material impresses with its high resistance, a low-reflection surface and is ideal for daily use in electronics production. For maximum flexibility, we manufacture SafeGuard table mats precisely to measure - tailored exactly to your workstations, systems and individual requirements.
- ✔ Two-layer ESD table covering (dissipative/conductive)
- ✔ Surface resistance: 10⁶ - 10⁷ Ohm
- ✔ Permanently elastic, abrasion-resistant and comfortable
- ✔ Anti-reflective surface - simplifies work
- ✔ RoHS compliant
- ✔ Heat and solder resistant
- ✔ Resistant to chemicals and oil
- ✔ Temperature-resistant according to glow wire test - IEC 60335-1:2010
What is ESD?
ESD stands for the abbreviation "Electro Static Discharge". This means that ESD can cause an electrical overload on electronic components and damage them. Effective protection against damage caused by electrostatic discharge is provided by ESD protection zones, so-called EPA (Electrostatic Protected Area). In this special protected area, all precautionary measures are taken to enable work with electrostatically sensitive components without damaging them. An EPA equipped in accordance with the minimum requirements of DIN EN 61340-5-1 includes the following areas, among others:
Why are ESD table mats so important?
Sensitive devices such as computers, circuit boards or data storage media can be damaged by overvoltages. Overvoltages are caused by simple friction, especially in very dry room air. The voltage caused by the employee can be transferred to electrical devices. In this case, a discharge occurs, which can release several hundred or even thousands of volts. Dissipative mats have a voltage-resistant resistor that ensures a discharge. Ideally, an earthing cable is connected to the ESD table mat, which absorbs electrical voltages on the one hand and dissipates them via a special ESD earthing module on the other.
Our SafeGuard ESD table mats all comply with DIN EN 61340 and are also RoHS-compliant - "Restriction of (the use of certain) Hazardous Substances in electrical and electronic Equipment". The aim of this EC directive is to protect human health and the environment by avoiding the use of six substances - heavy metals and brominated flame retardants/plasticisers. This directive is particularly important with regard to the use of certain hazardous substances in electrical and electronic equipment in an EPA.
SafeGuard - our quality promise
Under the name SAFEGUARD, we offer you a premium brand for ESD protection products from Weidinger with maximum safety for your ESD area - combined with high-performance ESD service for more productivity from a single source. SAFEGUARD ESD table mats are produced in a certified development process, are resistant to heat and solder and have a pleasant anti-reflective surface. This means you are optimally equipped for working on sensitive components in an ESD protection zone.
- ✔ Resistant to chemicals and oil
- ✔ Permanently elastic, abrasion-resistant and comfortable
- ✔ RoHS-compliant
- ✔ Anti-reflective surface
- ✔ Two-layer design (dissipative / conductive)
- ✔ Surface resistance: 106 – 107 Ohm
Explore the full SafeGuard product range in our brand shop
With SafeGuard, we offer you a comprehensive range of ESD protection products, including ESD mats, grounding wrist straps, and antistatic workwear - all meeting the highest quality standards. In our articles, you will learn how these products can be used in various applications and the benefits they bring to your production environment.
In addition, we share practical tips and best practices to help ensure your work areas are optimally protected against electrostatic discharge. Stay up to date and discover how the right ESD protection measures, combined with SafeGuard’s high-quality solutions, can safeguard the longevity and reliability of your electronic components. Explore the SafeGuard brand in our SafeGuard Shop and our brand world as well!
