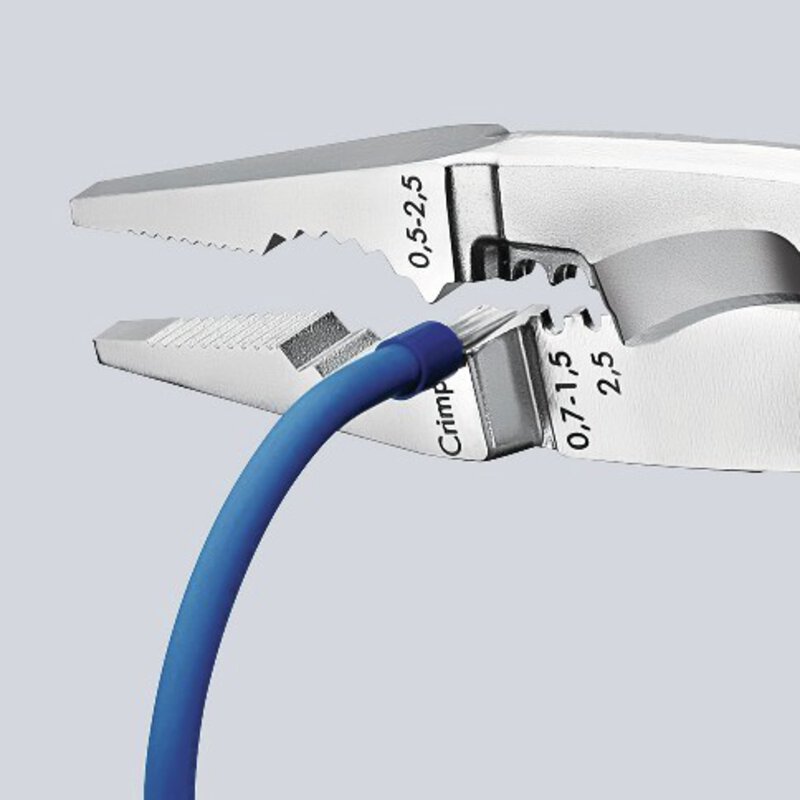

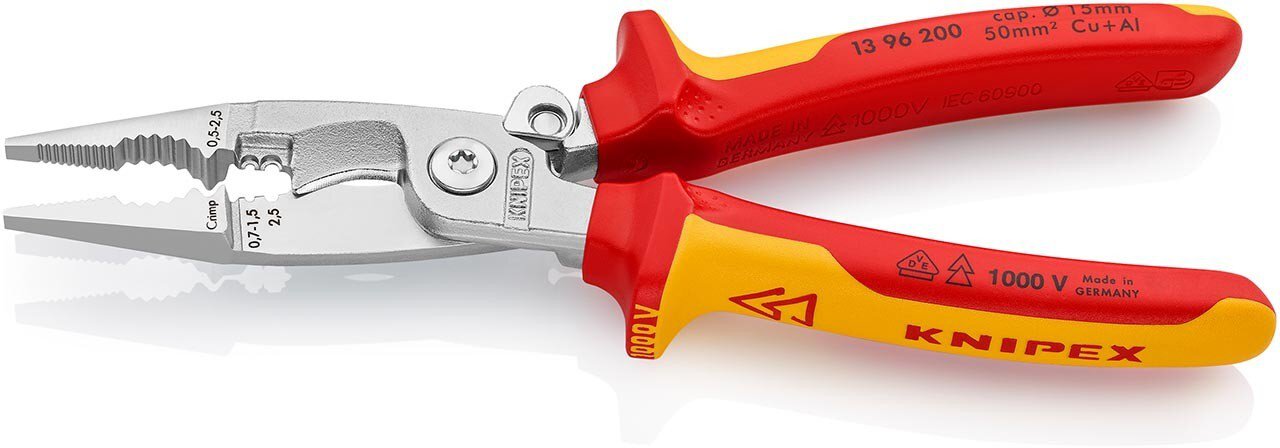

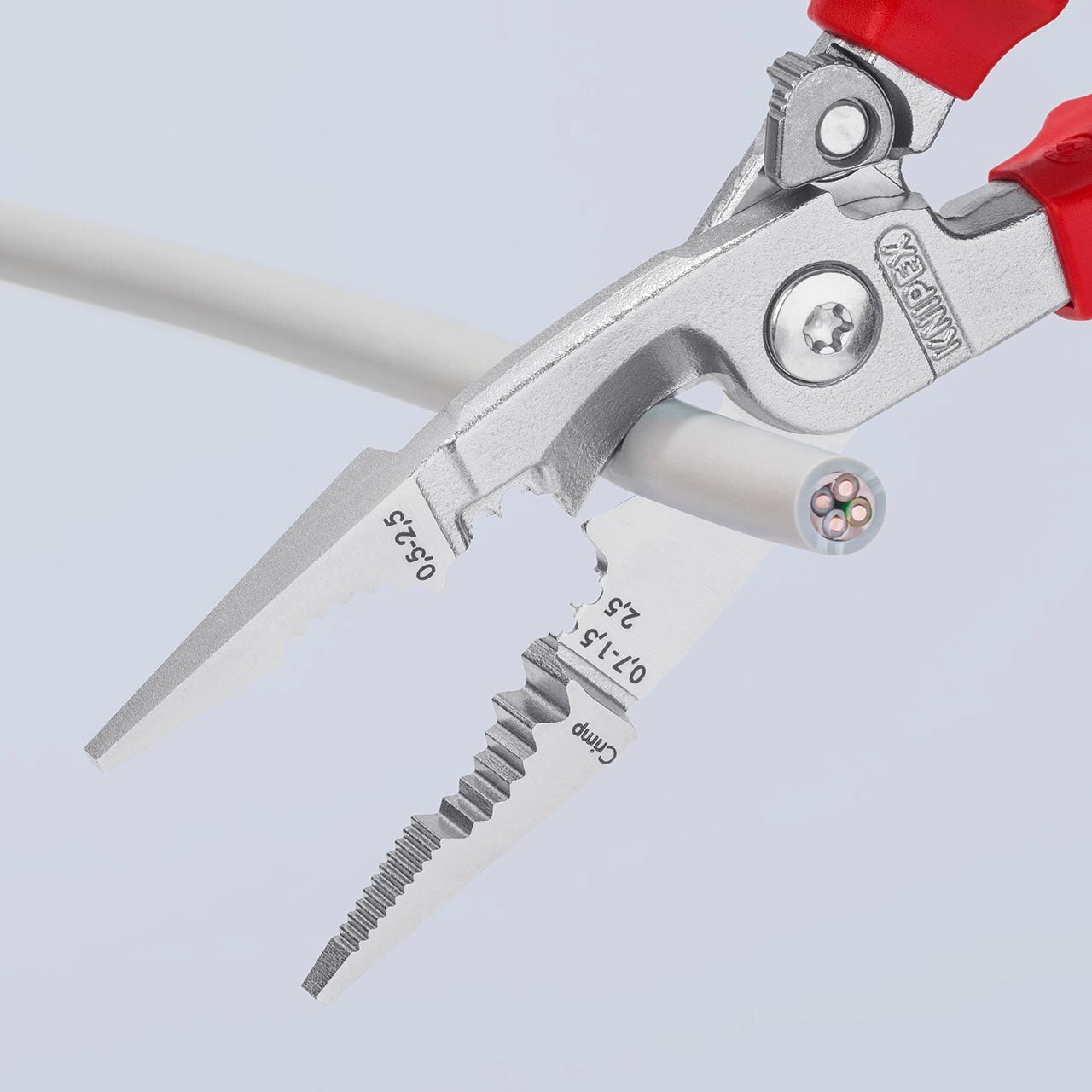

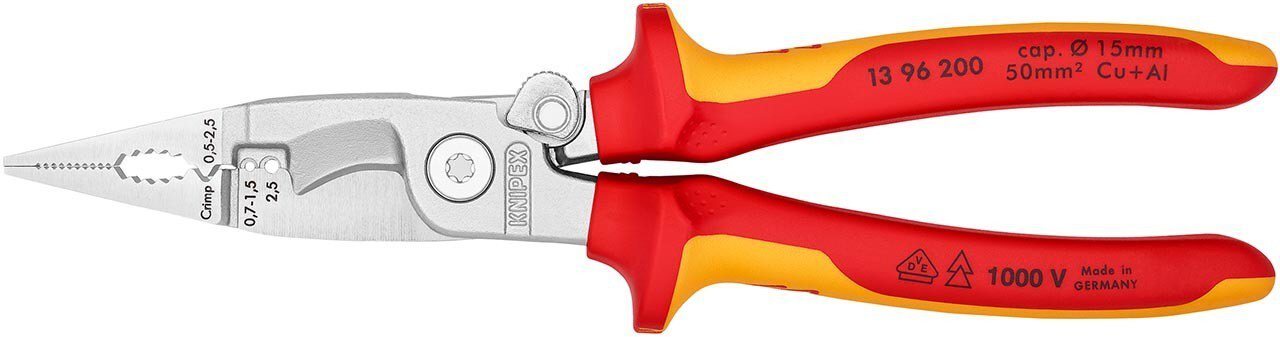

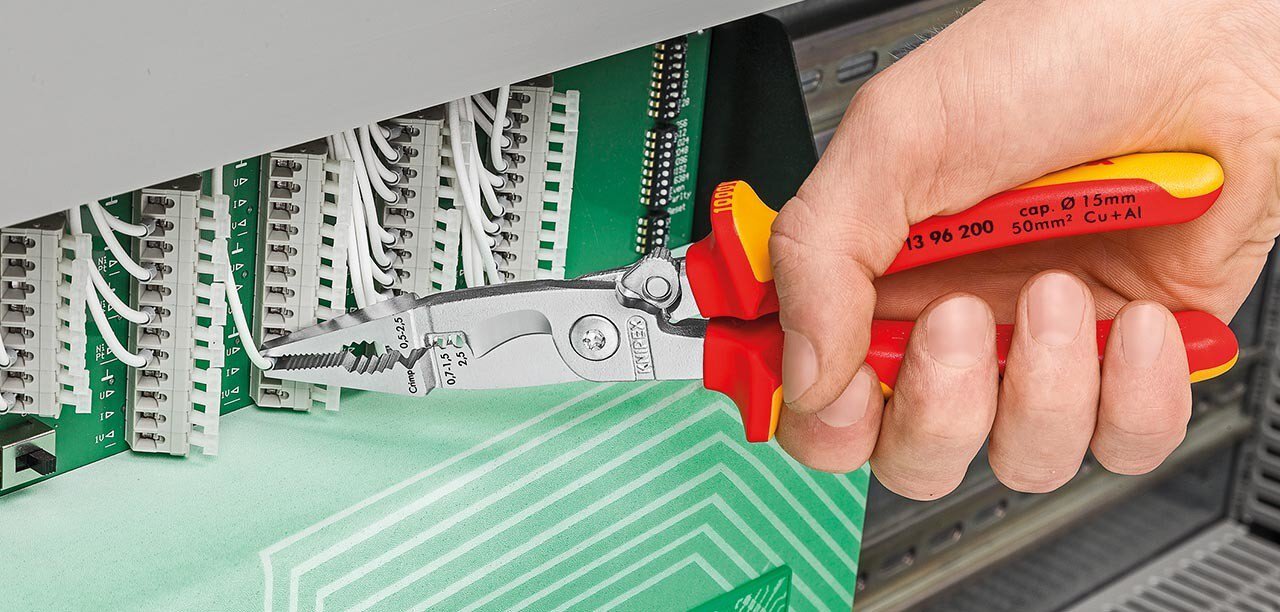

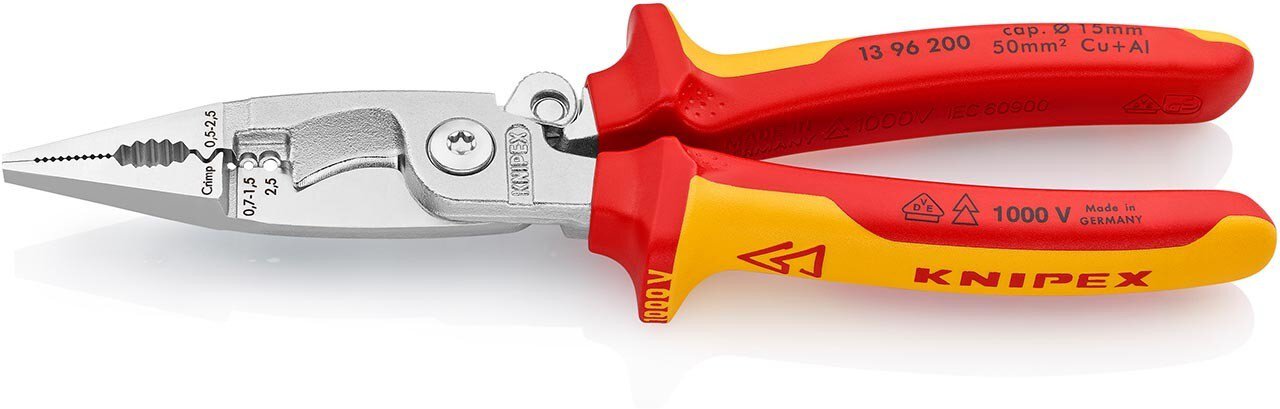

Electrical installation pliers, chrome-plated, insulated, 200 mm
6 functions in one pair of pliers. Multifunctional pliers for electrical installation; for gripping flat and round material, bending, deburring, cable cutting, stripping and crimping wire end ferrules. Smooth gripping surfaces at the tip for damage-free gripping of single wires; profiled gripping surfaces and burner hole for gripping flat and round material. Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes. Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm². Crimping nest for wire end ferrules 0.5 - 2.5 mm². Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm. Slim design for good accessibility. Bolted joint: precise, backlash-free operation of the pliers. on the models with opening spring integrated in the joint, the activated pawl keeps the cutting edges closed while the other functions are maintained. with the intelligent locking mechanism, you can grip without opening the pliers. The cutting edge remains closed and protected. - Cutting value Cu-cable, stranded: Ø 15mm - Cutting value Cu-cable, stranded: 50mm² - Stripping values for single wires: 0.75 - 1.5mm² / 2.5mm² - Capacity square millimetres: 0.5 - 2.5mm² - AWG: 1 / 0 - VDE-tested: Yes
• Smooth gripping surfaces at the tip for damage-free gripping of single wires
• Profiled gripping surfaces and burner hole for gripping flat and round material
• Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes
• Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
• Crimping nest for wire end ferrules 0.5 - 2.5 mm²
• Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim design for good accessibility
• screwed joint: precise, backlash-free operation of the pliers
• Smooth gripping surfaces at the tip for damage-free gripping of single wires
• Profiled gripping surfaces and burner hole for gripping flat and round material
• Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes
• Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
• Crimping nest for wire end ferrules 0.5 - 2.5 mm²
• Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim design for good accessibility
• screwed joint: precise, backlash-free operation of the pliers
| Item no. | WL61361 |
| Model | 13 96 200 |
| Manufacturer | KNIPEX |
| Manufacturer article no. | 13 96 200 |
| Length | 255 mm |
| Width | 85 mm |
| Height | 20 mm |
| Length with packaging | 212 mm |
| Width with packaging | 67 mm |
| Height with packaging | 30 mm |
| Volume with packaging | 3.571 dm³ |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Type of packaging | single pack |
| Incl. battery | no |
| Standards | DIN EN 60900 | IEC 60900 |
| RoHS compliant | no |
| Net weight (manufacturer) | 298 g |
| Surface | chrome-plated |
| VDE | yes |
| ESD compliant | no |
| Fastening for fall protection | nein |
| Jaw shape | flat |
| AWG | 1 / 0 |
| Crimp profile | Mandrel crimp |
| Stripping value in mm² | 0.75 – 2.5 mm² |
| Tool length | 200 mm |
| Description Head | chrome-plated |
| Grip (expression) | VDE | insulated with multi-component sleeves, VDE-tested |
| Cutting value copper cable, stranded | 50 mm² |
| Cutting value copper cable, stranded (diameter) | 15 mm |
| Type of pliers | electronic pliers |
| GPSR manufacturer data | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
CHF 68.37
Available soon
Item No.WL61361
