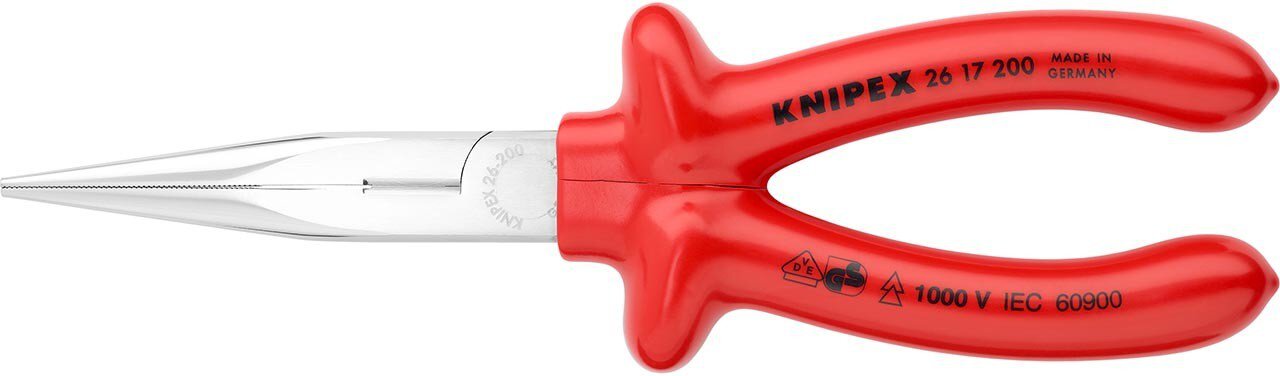

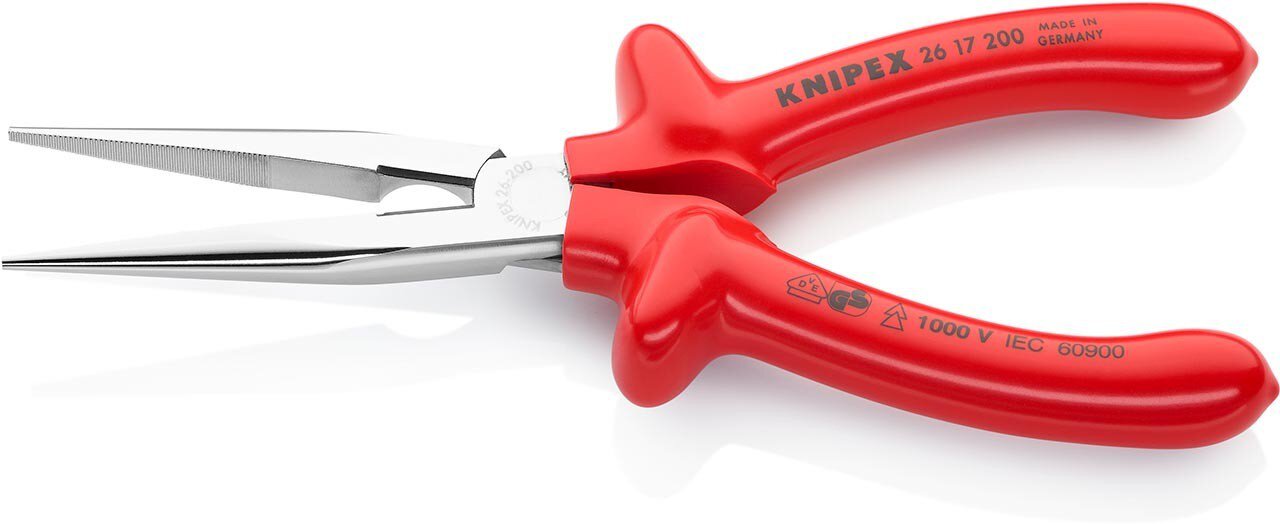

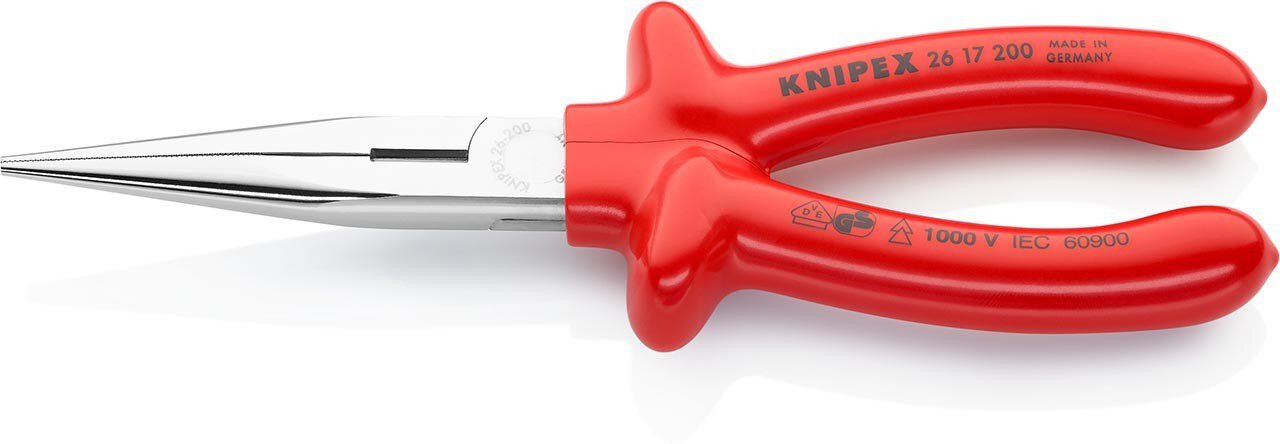

Needle nose pliers with cutting edge (cranesbill pliers), chrome-plated, dip-insulated, 200 mm

Flat round-nose pliers with cutting edge Elastic tips: dimensionally stable even when twisted. Torsion-tolerant, elastic precision tips. Flat-round, long, pointed jaws. With cutting edges for soft, medium-hard and hard wire. Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC. straight jaws. - Cutting value medium-hard wire (diameter): Ø 3.2mm - Cutting value hard wire (diameter): Ø 2.2mm - Jaw thickness (at joint) (T1): 9.5mm - Tip width (E): 3.0mm - Tip thickness (D1): 2.5mm - Jaw length (L3): 73.0mm - Head width (W3): 18mm - Shape: 1 - VDE-tested: Yes

• Torsion-tolerant, elastic precision tips
• Flat-round, long, tapered jaws
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction hardened, cutting edge hardness approx. 61 HRC
Item no.WL61413
Model26 17 200
ManufacturerKNIPEX
Manufacturer article no.26 17 200
Length210 mm
Width60 mm
Height28 mm
Length with packaging211 mm
Width with packaging66 mm
Height with packaging30 mm
Volume with packaging0.535 dm³
Sales unit1 piece
Content unit1 piece
Type of packagingsingle pack
Incl. batteryno
StandardsDIN EN 60900, DIN ISO 5745 | IEC 60900
RoHS compliantno
Net weight (manufacturer)240 g
Surfacechrome-plated
VDEyes
Jaw thickness9.5 mm
ESD compliantno
Jaw shapeflat-round
Description Headchrome-plated
Grip (expression)VDE | dip-insulated, VDE-tested
Length of the jaws73 mm
Cutting value wire diameter (hard)2.2 mm
Cutting value wire diameter (medium)3.2 mm
Type of plierssnipe nose pliers
GPSR manufacturer dataKNIPEX-Werk
Oberkamper Strasse 13
DE-42349 Wuppertal-Cronenberg
www.knipex.de

CHF 45.85

Available soon
Item No.WL61413
