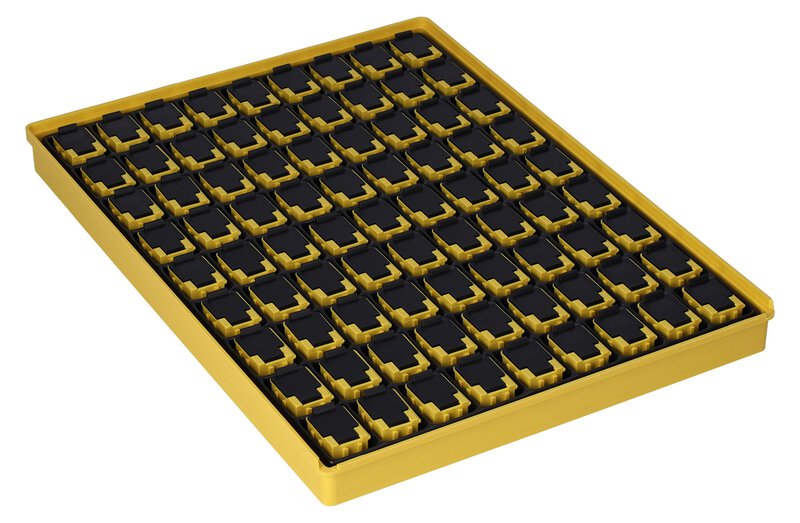

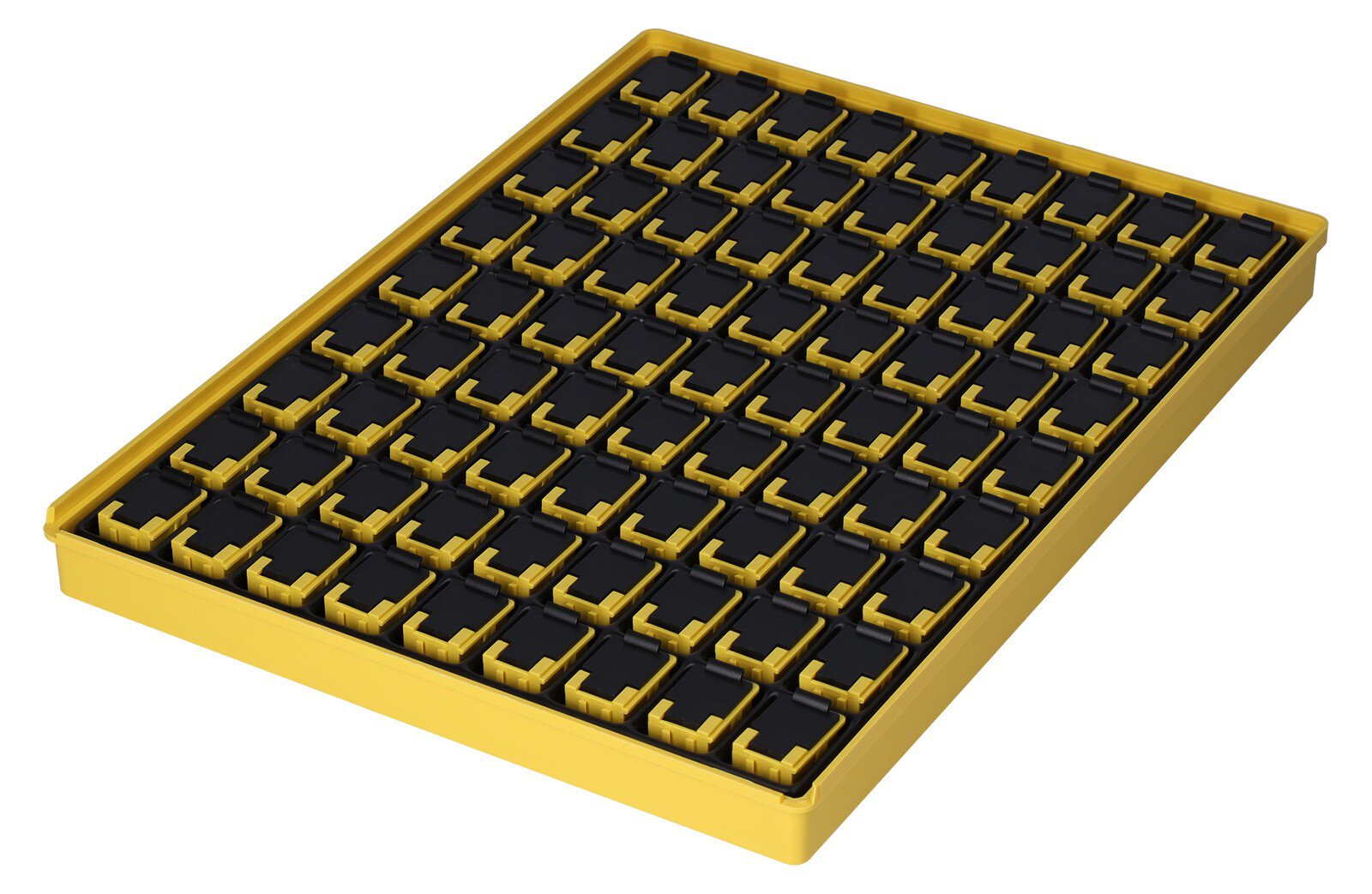

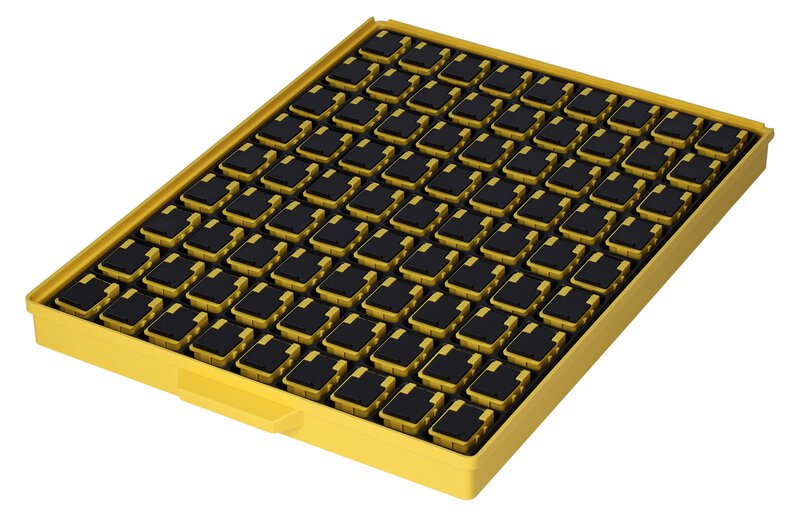

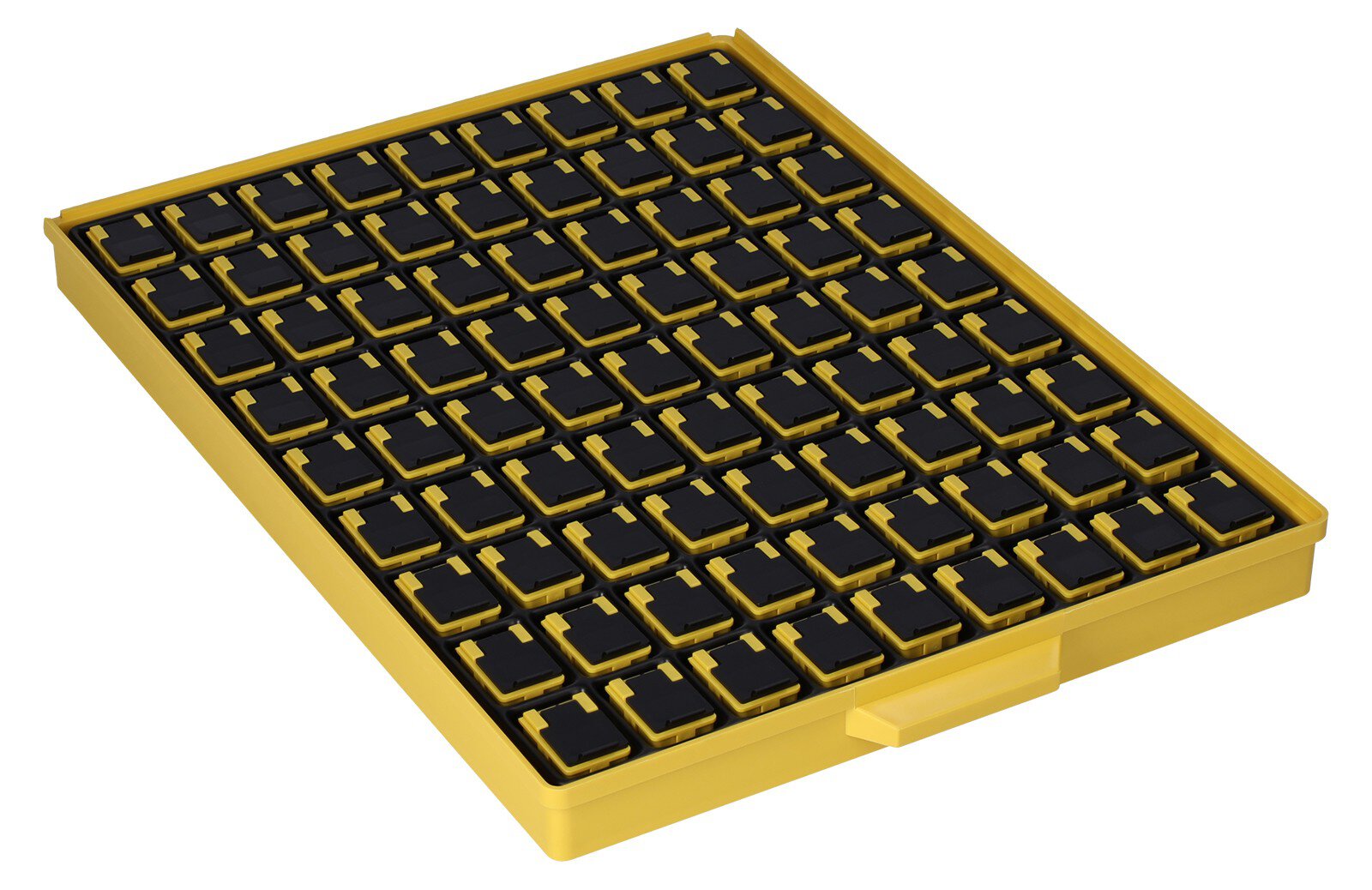

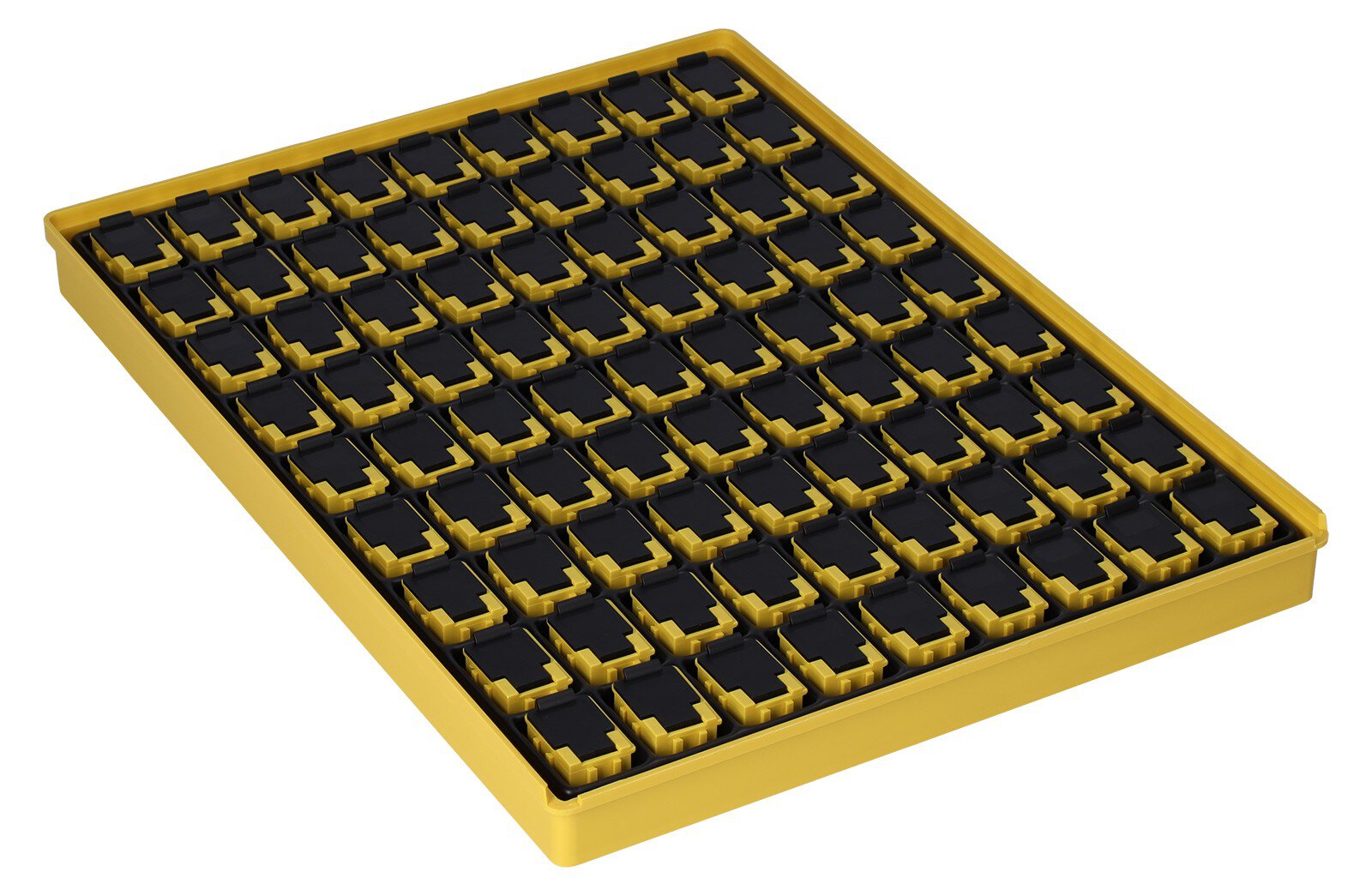

SMD drawer 340/22 incl. 81x SMD box N1 with ESD cover and TZ insert, yellow/black
Discover the SMD drawer 340/22 from Licefa, available at Weidinger.eu, which has been specially developed for electronics production. This high-quality drawer, item number 8900056, is made of impact-resistant, dissipative ABS in eye-catching yellow. It offers a dissipative surface with a resistance of >1 x 10⁴ to <1 x 10¹¹ ohms, ideal for protecting sensitive electronic components.
The drawer is equipped with a conductive thermoformed polystyrene insert and contains 81 SMD boxes (SMD Box 01, 8150059), which enable efficient organization and storage of your components. The black hinged lid made of ESD-compliant polystyrene provides additional protection and easy handling.
Perfectly suited for the AFS 340/22 surface-mounted enclosure, this drawer has an internal dimension of 340x250x22 mm. It is the ideal solution for safe and organized storage in your electronics production. Take advantage of this well thought-out design for an optimized working environment.
• Drawer made of dissipative (dissipative >1 x 10⁴ to <1 x 10¹¹ Ohm) ABS (acrylonitrile butadiene styrene, impact-resistant) in the color yellow
• with thermoforming insert made of conductive (dissipative >1 x 10⁴ to <1 x 10¹¹ Ohm) polystyrene and inserted SMD boxes, 81 x SMD Box 01 (8150059)
• UT: ABS, ESD-DIS, yellow
• Hinged lid: PS, ESD-CON, black
• for surface-mounted enclosure AFS 340/22, without license plates
• Drawer LxWxH, inside, each: 340x250x22 mm
The drawer is equipped with a conductive thermoformed polystyrene insert and contains 81 SMD boxes (SMD Box 01, 8150059), which enable efficient organization and storage of your components. The black hinged lid made of ESD-compliant polystyrene provides additional protection and easy handling.
Perfectly suited for the AFS 340/22 surface-mounted enclosure, this drawer has an internal dimension of 340x250x22 mm. It is the ideal solution for safe and organized storage in your electronics production. Take advantage of this well thought-out design for an optimized working environment.
• Drawer made of dissipative (dissipative >1 x 10⁴ to <1 x 10¹¹ Ohm) ABS (acrylonitrile butadiene styrene, impact-resistant) in the color yellow
• with thermoforming insert made of conductive (dissipative >1 x 10⁴ to <1 x 10¹¹ Ohm) polystyrene and inserted SMD boxes, 81 x SMD Box 01 (8150059)
• UT: ABS, ESD-DIS, yellow
• Hinged lid: PS, ESD-CON, black
• for surface-mounted enclosure AFS 340/22, without license plates
• Drawer LxWxH, inside, each: 340x250x22 mm
| Item no. | WL85966 |
| Manufacturer | LICEFA |
| Manufacturer article no. | 8900056 |
| Length | 340 mm |
| Height | 22 mm |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Colour | yellow black |
| Material | PS |
| Incl. battery | no |
| Net weight (manufacturer) | 750 g |
| Typical surface resistance (Rpp) | dissipativ >1 x 10⁴ - <1 x 10¹¹ Ohm |
| Material storage boxes | plastic |
| ESD compliant | yes |
| GPSR manufacturer data | LICEFA GmbH & Co.KG Lemgoer Strasse 11 DE-32108 Bad Salzuflen www.licefa.de |
CHF 300.13
Available soon
Item No.WL85966
