Multi-axis rework station for PCBs up to 13x13 cm

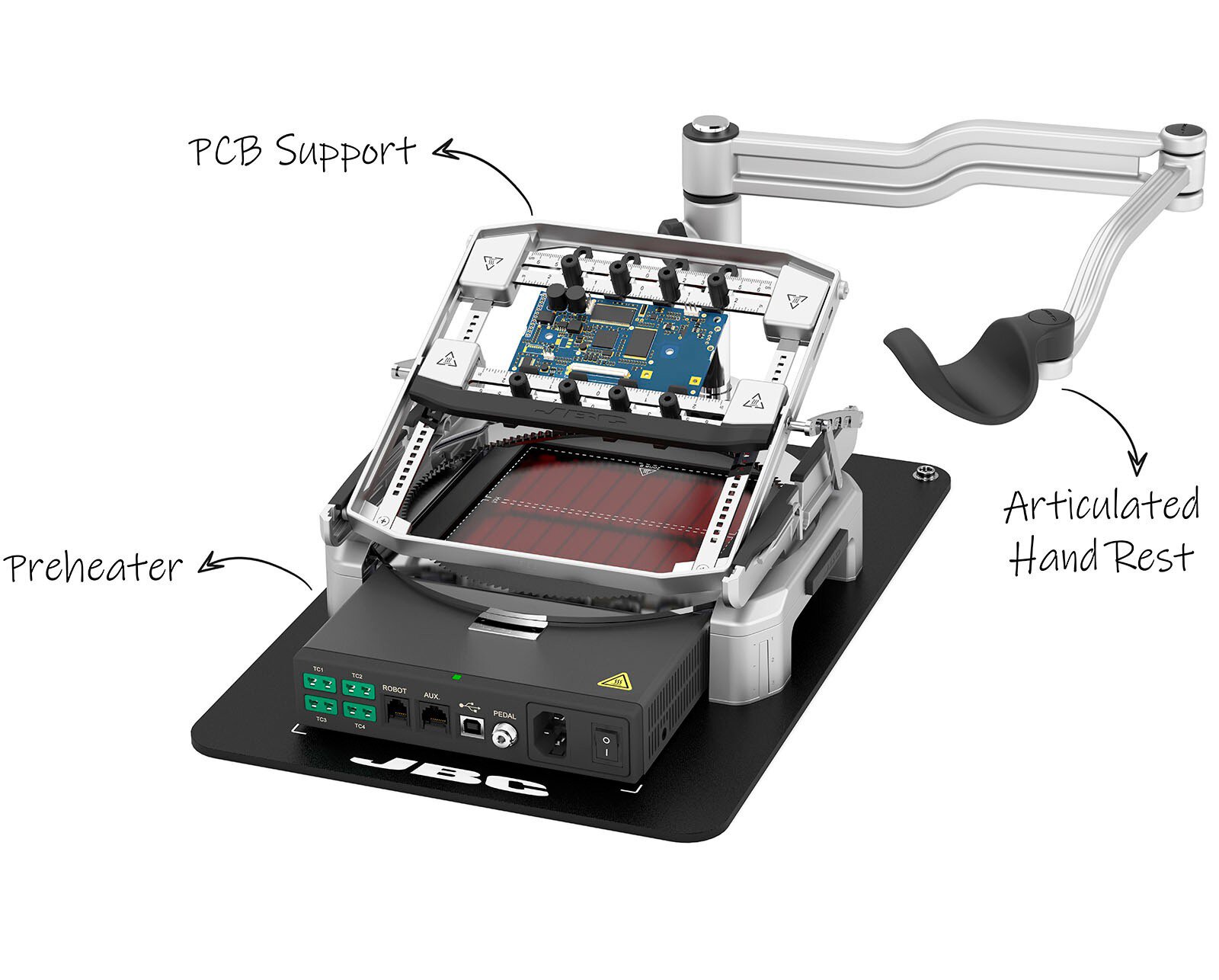

The JBC Multiaxis Rework Bench is the ideal set for precise reworking and ensures the highest soldering quality by combining three essential features:
• Uniform heating and avoidance of thermal shocks:

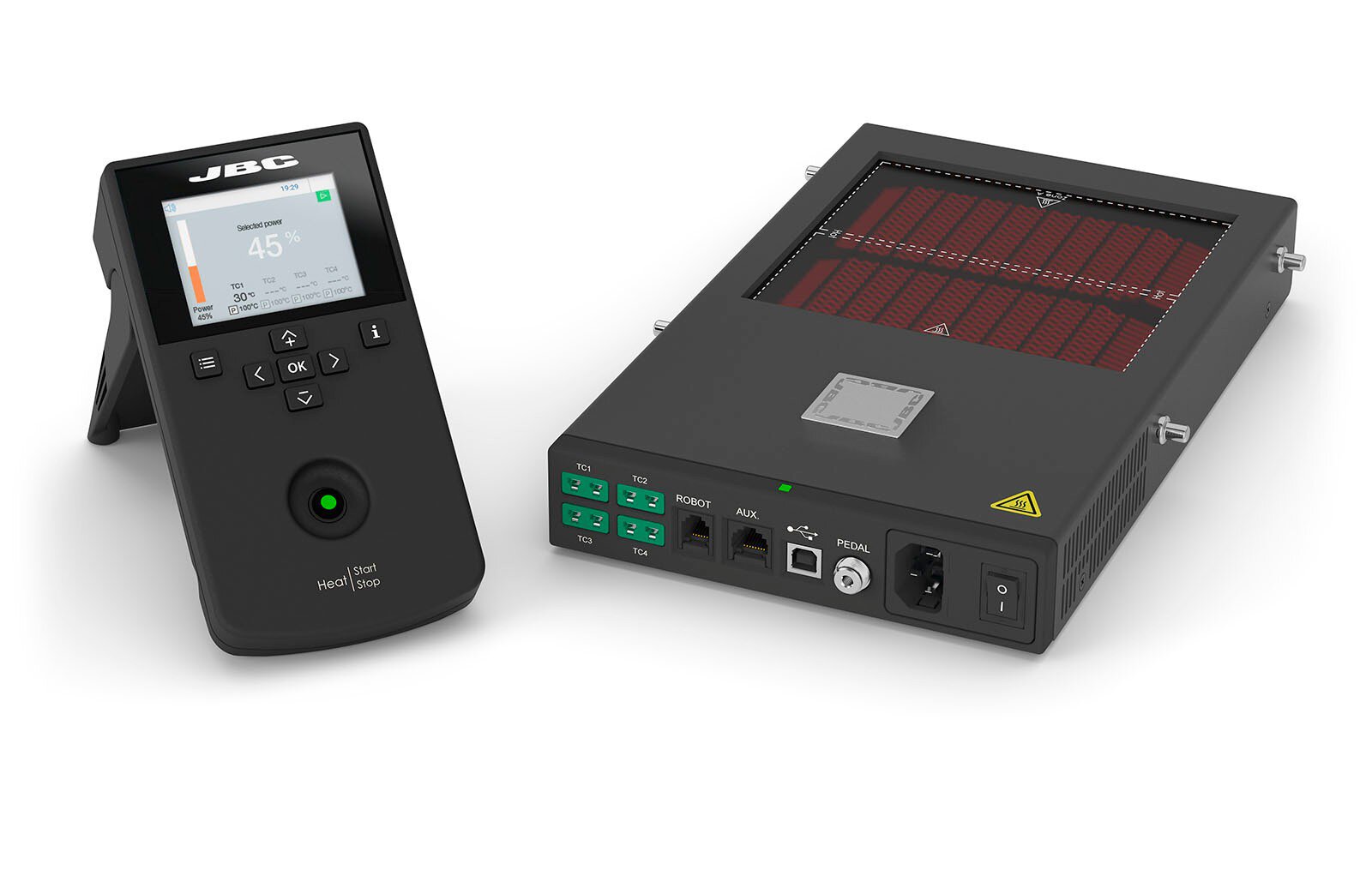

The PHSE preheater is essential to avoid thermal shock on multilayer PCBs during rework. It has a heating surface of 130 x 135 mm / 5.12 x 5.31 inches.

• Optimized workflow and precise PCB handling:

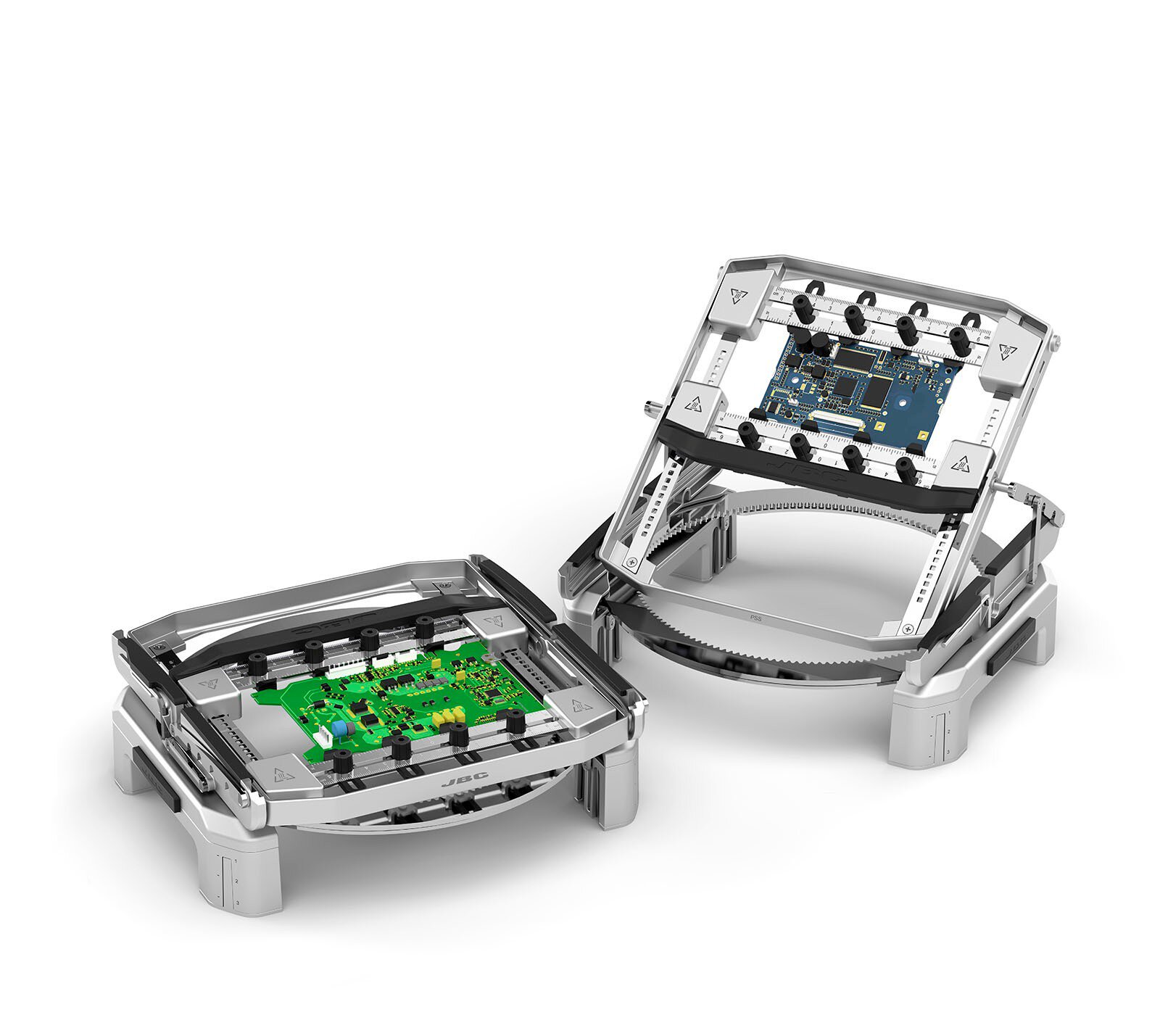

The PSS Multiaxis Rotative PCB Support enables quick, easy and precise PCB position changes, allowing soldering and repair work in any position - ideal for recurring soldering work.

• Improved stability and comfort:

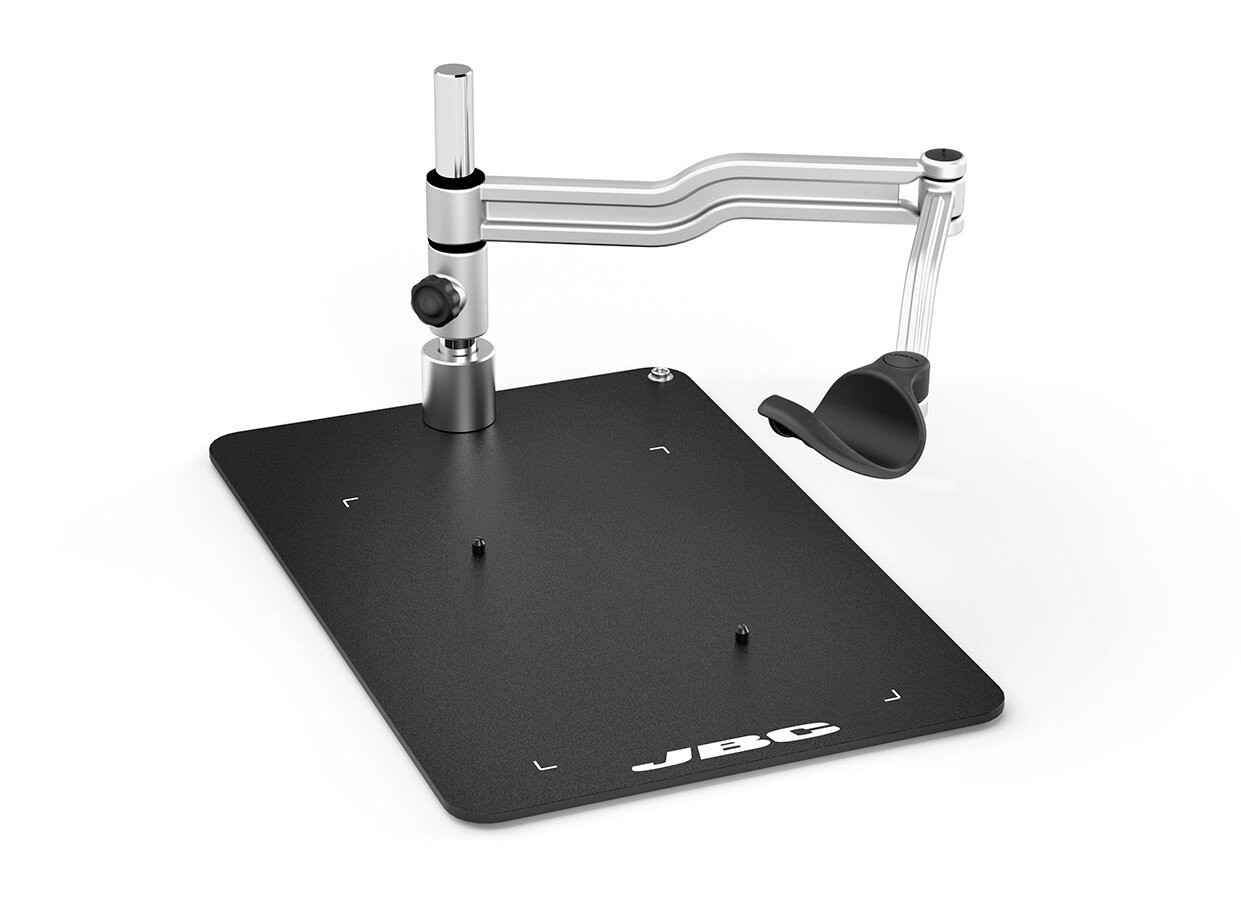

The RHS Articulated Hand Rest provides support for the hand close to the work area. More comfortable working and less fatigue ensure precise work processes.

Item no.	WL87533
Manufacturer	JBC
Manufacturer article no.	RBSM-2A
Length	415 mm
Width	360 mm
Height	205 mm
Length with packaging	620 mm
Width with packaging	395 mm
Height with packaging	415 mm
Length with packaging in inches	24.41 in
Width with packaging in inches	15.55 in
Height with packaging in inches	16.34 in
Scope of delivery	1x PHSE preheating plate 1x PSS multi-axis swivel support 1x RHS articulated hand support for PHSEK preheating set
Sales unit	1 piece
Content unit	1 piece
Product series	RBSM
Power	800 W
Voltage	230 V
Temperature range °C	50 – 250 °C
Temperature range °F	120 – 482 °F
Matching accessories	P005, HRL, P405
Number of standard temperature profiles	3
Number of user temperature profiles	22
Number of zones	2
Working hours (max.)	50 m
Length of the heating surface	135 mm
Width of the heating surface	130 mm
ESD compliant	yes
GPSR manufacturer data	JBC Soldering SL Ramón y Cajal 3 ES-08750 Molins De Rei www.jbctools.com
