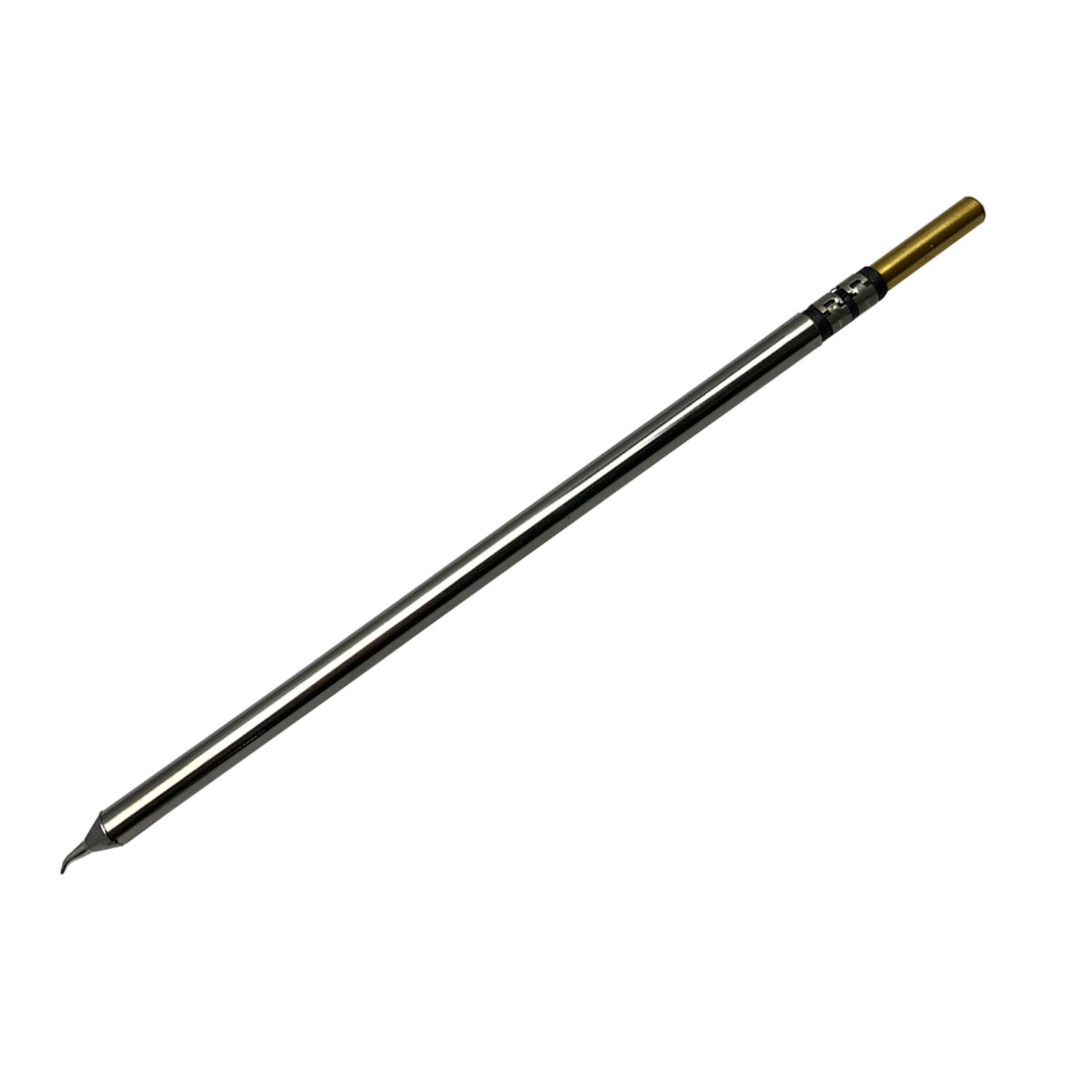

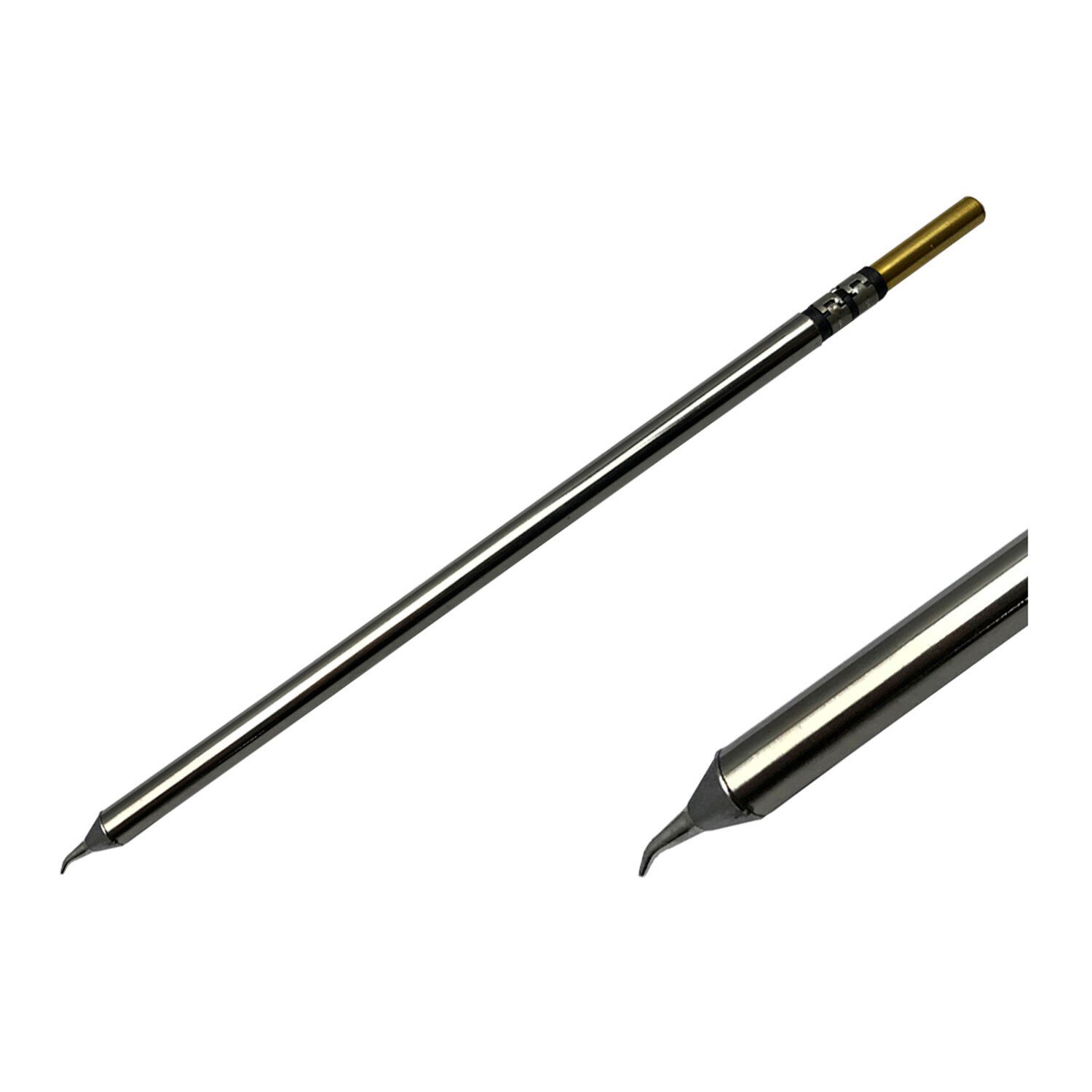

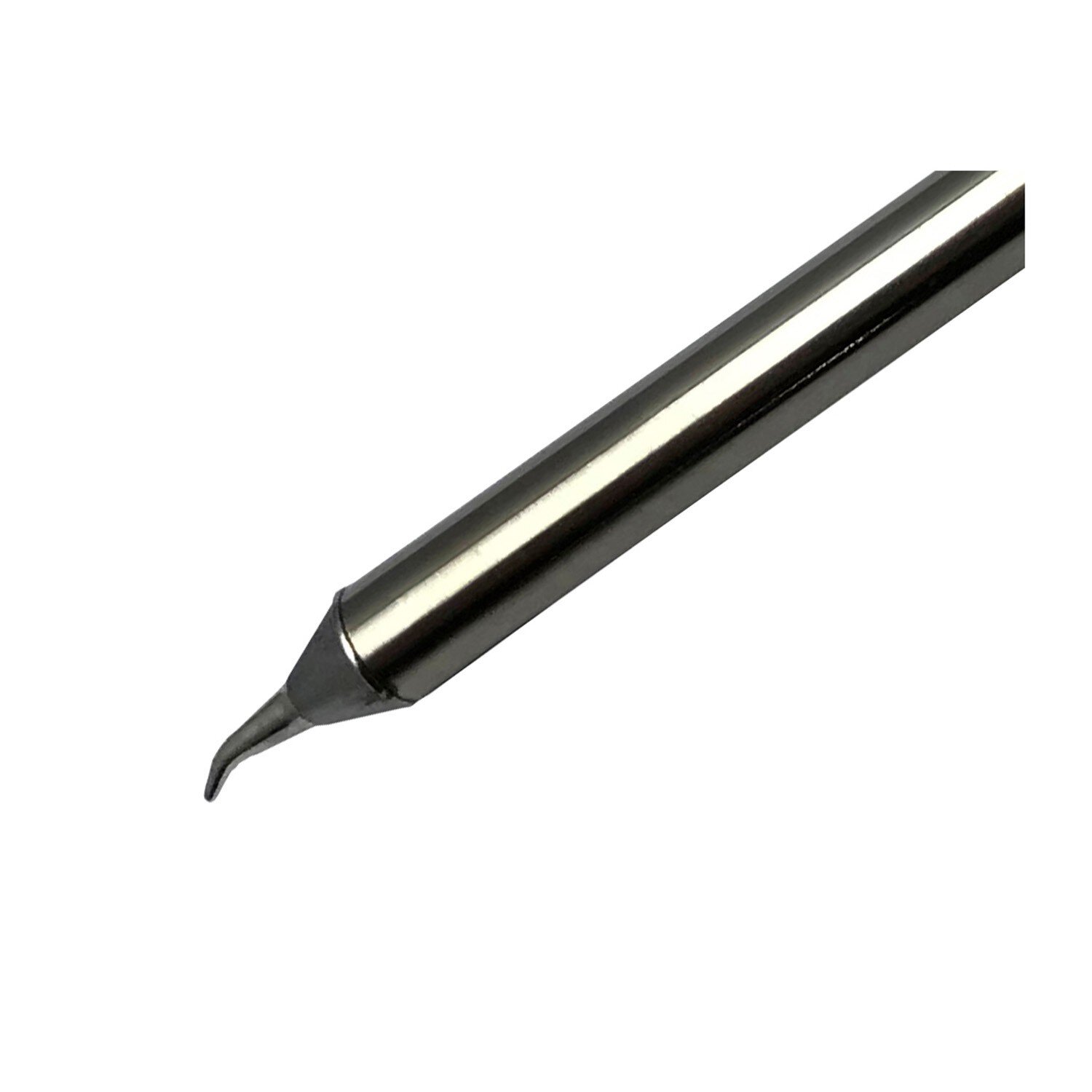

CVC Solder Tip, Tapered, 0.6 x 0.8 mm, 600 Series
CVC and SMC solder tip cartridges are the standard solder tip lineup for Metcal’s CV-5200, CV-500, MX-500, MX-5200, and MX-5200 series soldering stations. All cartridges are available in 4 temperature ranges: 600 Series nominal 330 °C, 700 Series nominal 390 °C, 800 Series nominal 440 °C, and 900 Series nominal 470 °C. The temperature/series is indicated by the first digit in the numerical portion of the part number; e.g., all models in the 600 Series are CVC-/SMC-0xx, in the 700 Series are CVC-/SMC-7xx, in the 800 Series are CVC-/SMC-8xx, and in the 900 Series are CVC-/SMC-9xx. Metcal recommends the 700 Series for most applications. The 600 Series is suitable for low-load or low-temperature applications, while the 800/900 Series is suitable for high-temperature applications with high thermal requirements. Can be used with leaded and lead-free solder. Metcal’s “SmartHeat® technology” automatically adjusts the power levels during each soldering operation.
| Item no. | WL93521 |
| Manufacturer | METCAL |

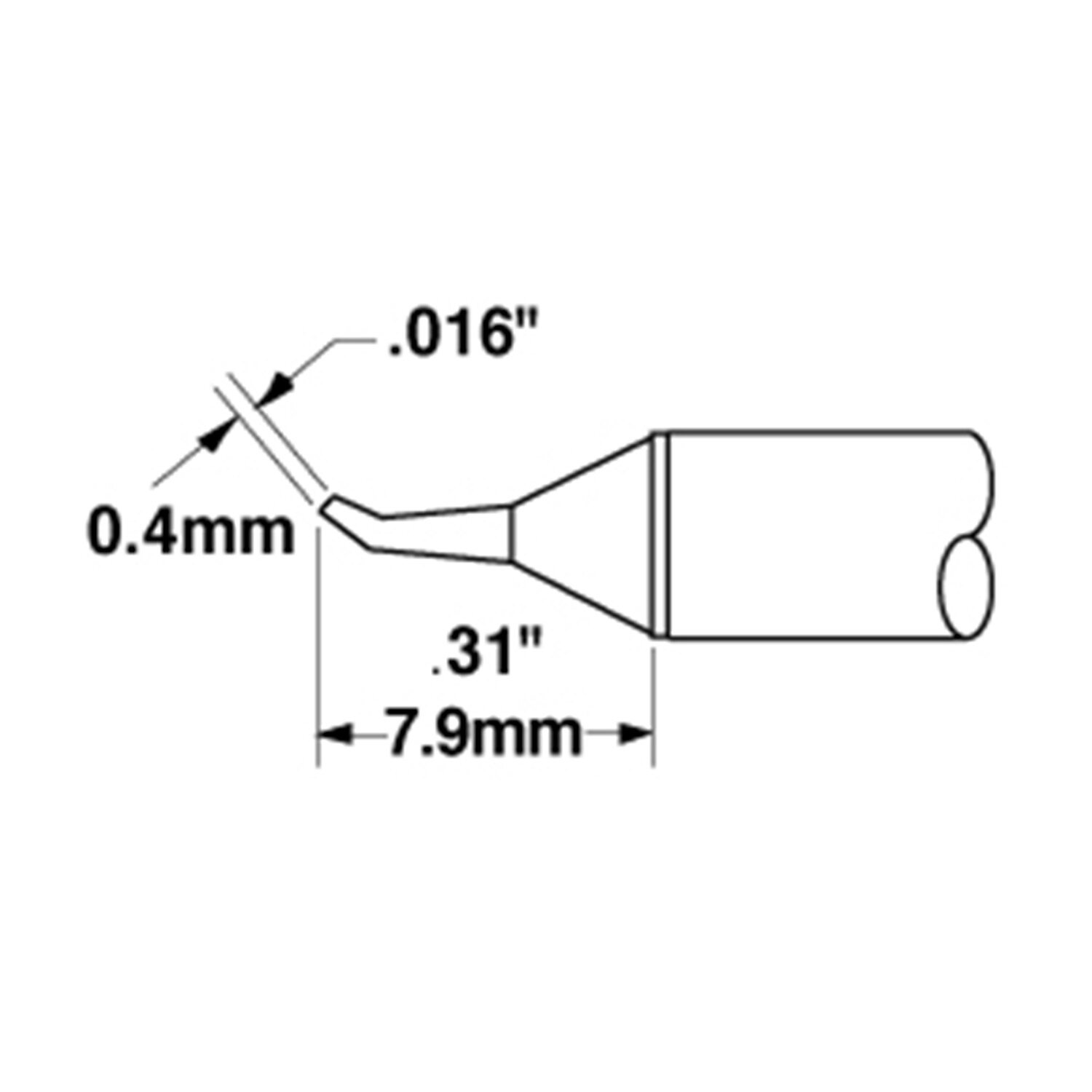

| Length | 7.9 mm |
| Width | 0.4 mm |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Tip series | 600 |
| Tip shape | conical |
| Tip alignment | straight |
| Matching handpiece | cv_500,mx_500,mx_5200,cv_5200 |
| ESD compliant | no |
| GPSR manufacturer data | OK International Ltd Eagle Close, Chandlers Ford GB-SO53 4NF Hampshire www.metcal.com |
CHF 36.44
Available soon
Item No.WL93521
