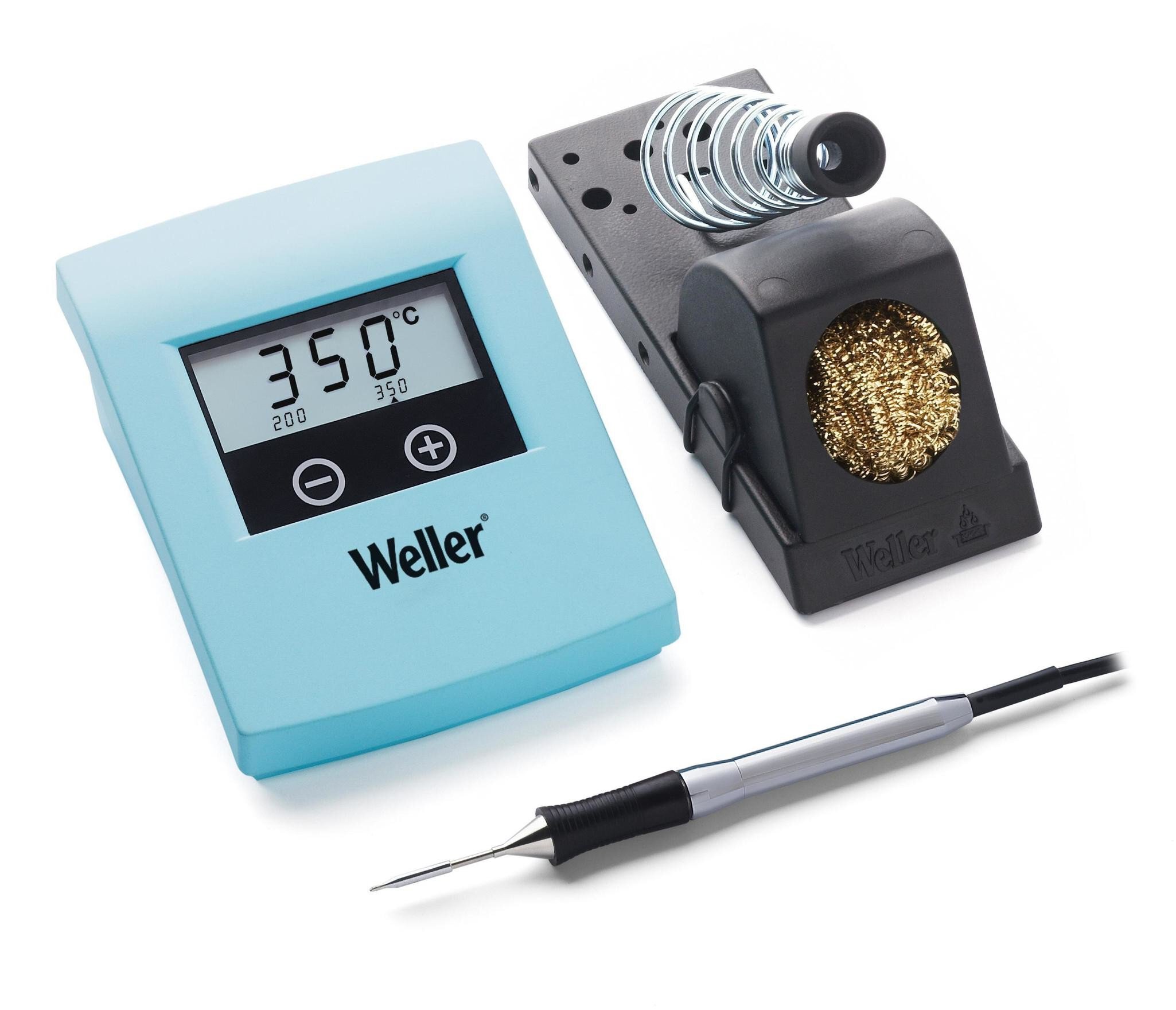

WSM 1 Mobile 1-Channel Soldering Station with WMRP Micro Soldering Iron
The WSM 1 was specifically developed for users who need a portable, mobile, and compact soldering station for professional applications. The WSM 1 features sophisticated temperature control. The ergonomic micro soldering iron with an integrated heating element is operated using the latest digital control system. The RTM micro soldering tips have an extremely fast heat-up time of approximately 5 seconds.
Features:
• Extremely fast heat-up time—ready to solder within 5 seconds. Fast heat-up and response times, sensor close to the solder joint, perfect heat transfer. No downtime, continuous workflow, excellent results.
• High temperature accuracy—high temperature accuracy (± 9°C (± 17 °F)) and temperature stability (± 5°C (± 9 °F)) for maximum precision during soldering
• Maximum process reliability—temperature lock function for maximum process reliability
• Wide selection of RT Micro soldering tips—flexible performance with the active Weller RT Micro (RTM) soldering tips for soldering micro and standard components, covering a wide range of soldering applications
• ESD-safe—specially designed for soldering in electrostatic-sensitive areas and wherever ESD-safe assembly is required• Intuitive touchscreen—all functions right at your fingertips with the intuitive touchscreen
Features:
• Extremely fast heat-up time—ready to solder within 5 seconds. Fast heat-up and response times, sensor close to the solder joint, perfect heat transfer. No downtime, continuous workflow, excellent results.
• High temperature accuracy—high temperature accuracy (± 9°C (± 17 °F)) and temperature stability (± 5°C (± 9 °F)) for maximum precision during soldering
• Maximum process reliability—temperature lock function for maximum process reliability
• Wide selection of RT Micro soldering tips—flexible performance with the active Weller RT Micro (RTM) soldering tips for soldering micro and standard components, covering a wide range of soldering applications
• ESD-safe—specially designed for soldering in electrostatic-sensitive areas and wherever ESD-safe assembly is required• Intuitive touchscreen—all functions right at your fingertips with the intuitive touchscreen
| Item no. | WL25541 |
| Model | WSM-1 |
| Manufacturer | WELLER |
| Manufacturer article no. | T0053292399N |
| Length | 137 mm |
| Width | 110 mm |
| Height | 55 mm |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Power | 50 W |
| Voltage | 240 V |
| Temperature range °C | 100 – 400 °C |
| Temperature accuracy °C | ± 9°C |
| Station (type) | soldering station |
| Temperature stability °C | ± 5°C |
| ESD compliant | yes |
| GPSR manufacturer data | WELLER Tools GmbH Carl-Benz-Strasse 2 DE-74354 Besigheim www.weller-tools.com |
