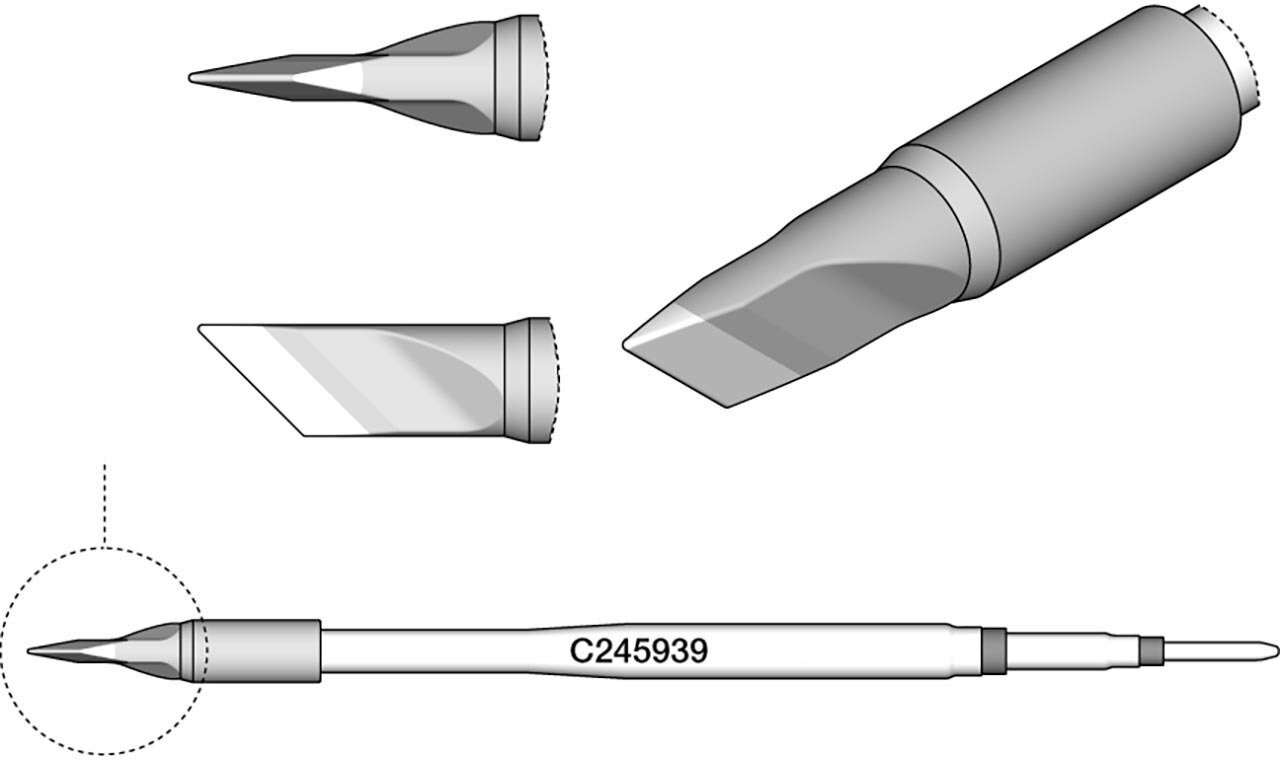

Knife-shaped soldering tip, 6 x 0.4 mm, C245939

The JBC C245939 soldering tip attachment with knife shape (6.0mm x 0.4mm) is a high quality soldering tip from the C245 series designed for use with JBC's T245 soldering irons. This soldering tip is ideal for general soldering applications, especially for soldering SMD components and applications with high power requirements, such as ground plane soldering.
JBC's C245 series is characterized by a wide range of soldering tips in different shapes and sizes suitable for different soldering requirements. The C245939 soldering tip offers excellent heat transfer and a long service life, making it a reliable choice for professional soldering applications.

Item no.	WL22528
Model	C245-939
Manufacturer	JBC
Manufacturer article no.	C245939
Length with packaging	110 mm
Width with packaging	12 mm
Height with packaging	12 mm
Sales unit	1 piece
Content unit	1 piece
Product series	C245
Tip series	C245
Incl. integrated heating	yes
Tip dimensions	6 x 0,4 mm
Tip length	13.5 mm
Total length of the soldering tip	100 mm
Tip shape	blade-shaped
Tip alignment	straight
Suitable soldering iron	T245
Matching handpiece	T245
Matching handpiece	T245
ESD compliant	no
GPSR manufacturer data	JBC Soldering SL Ramón y Cajal 3 ES-08750 Molins De Rei www.jbctools.com
