Electrical installation pliers, chrome-plated, insulated, fixing lug, 200 mm
6 functions in one pair of pliers. Multifunctional pliers for electrical installations; for gripping flat and round material, bending, deburring, cable cutting, stripping and crimping wire-end ferrules. Smooth gripping surfaces at the tip for damage-free gripping of single wires; profiled gripping surfaces and burner hole for gripping flat and round material. Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes. Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm². Crimping nest for wire end ferrules 0.5 - 2.5 mm². Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm. Slim design for good accessibility. Bolted joint: precise, backlash-free operation of the pliers. Pliers with integrated insulated fastening eye for attaching a fall protection. - Cutting value Cu-cable, stranded: Ø 15mm - Cutting value Cu-cable, stranded: 50mm² - Stripping values for single wires: 0.75 - 1.5mm² / 2.5mm² - Capacity square millimetre: 0.5 - 2.5mm² - AWG: 1 / 0 - Fall protection: Yes - VDE-tested: Yes
• Smooth gripping surfaces at the tip for damage-free gripping of single wires
• Profiled gripping surfaces and burner hole for gripping flat and round material

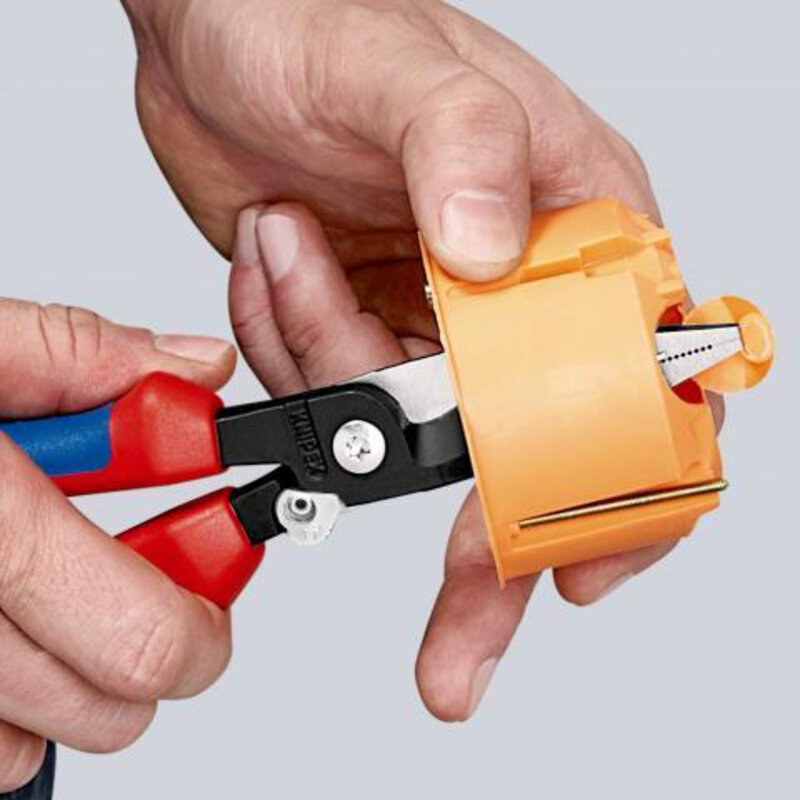

• Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes

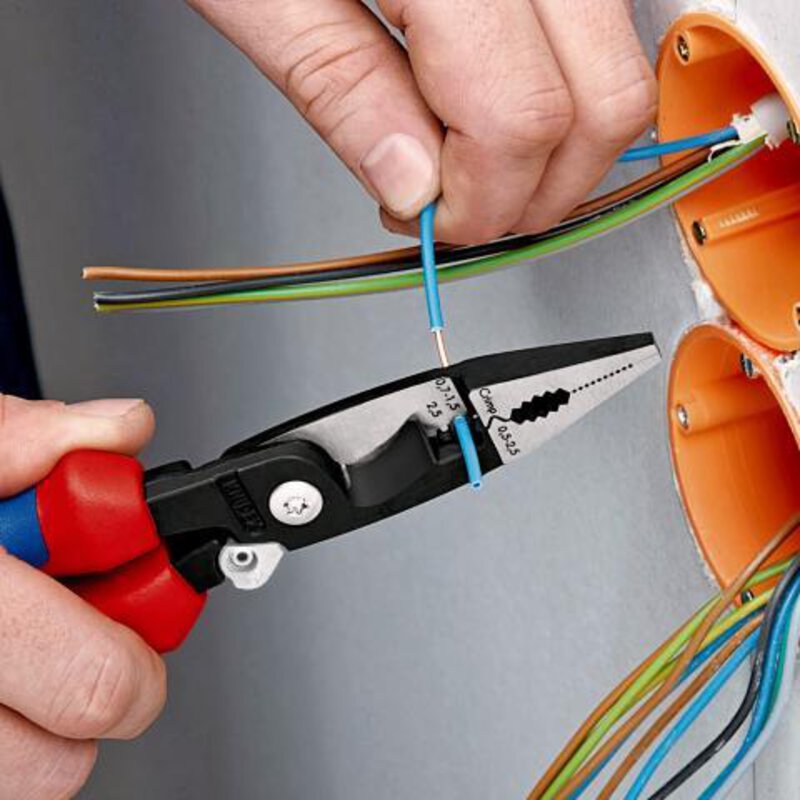

• Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²

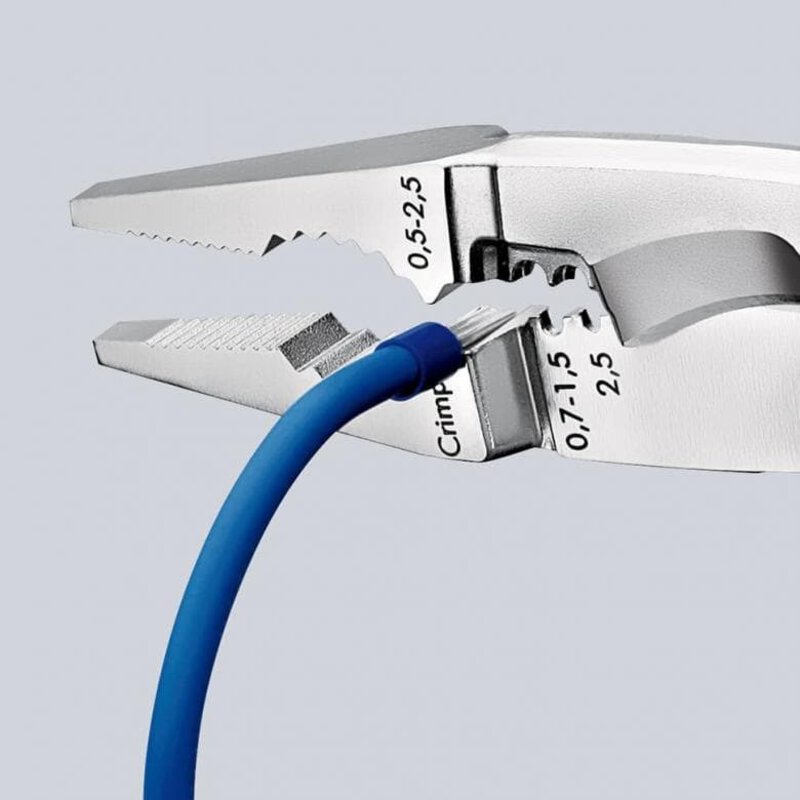

• Crimping nest for wire end ferrules 0.5 - 2.5 mm²

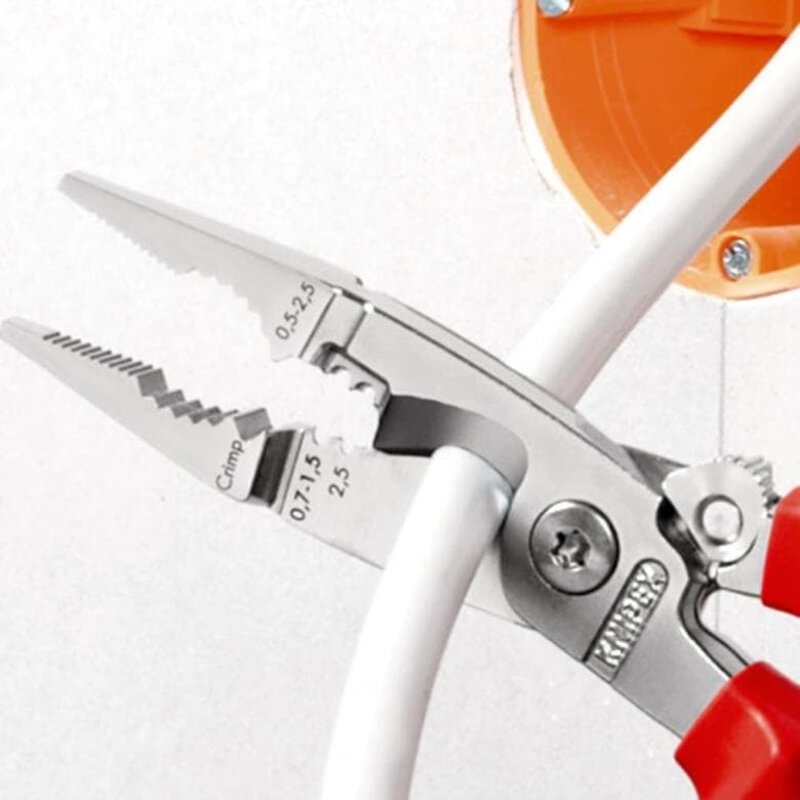

• Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim design for good accessibility
• screwed joint: precise, backlash-free operation of the pliers
• Smooth gripping surfaces at the tip for damage-free gripping of single wires
• Profiled gripping surfaces and burner hole for gripping flat and round material
• Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes
• Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
• Crimping nest for wire end ferrules 0.5 - 2.5 mm²
• Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
• Slim design for good accessibility
• screwed joint: precise, backlash-free operation of the pliers
| Item no. | WL61360 |
| Model | 13 96 200 T |
| Manufacturer | KNIPEX |
| Manufacturer article no. | 13 96 200 T |
| Length | 210 mm |
| Width | 63 mm |
| Height | 28 mm |
| Length with packaging | 211 mm |
| Width with packaging | 66 mm |
| Height with packaging | 31 mm |
| Volume with packaging | 0.42 dm³ |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Type of packaging | single pack |
| Incl. battery | no |
| Standards | DIN EN 60900 | IEC 60900 |
| RoHS compliant | no |
| Net weight (manufacturer) | 300 g |
| Surface | chrome-plated |
| VDE | yes |
| ESD compliant | no |
| Fastening for fall protection | ja |
| Jaw shape | flat |
| AWG | 1 / 0 |
| Crimp profile | Mandrel crimp |
| Stripping value in mm² | 0.75 – 2.5 mm² |
| Tool length | 200 mm |
| Description Head | chrome-plated |
| Grip (expression) | VDE, Tethered Tools | insulated with multi-component sleeves, VDE-tested; with integrated insulated fastening eye for attaching a fall protection device |
| Cutting value copper cable, stranded | 50 mm² |
| Cutting value copper cable, stranded (diameter) | 15 mm |
| Type of pliers | electronic pliers |
| GPSR manufacturer data | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
€61.60
Available soon
Item No.WL61360
