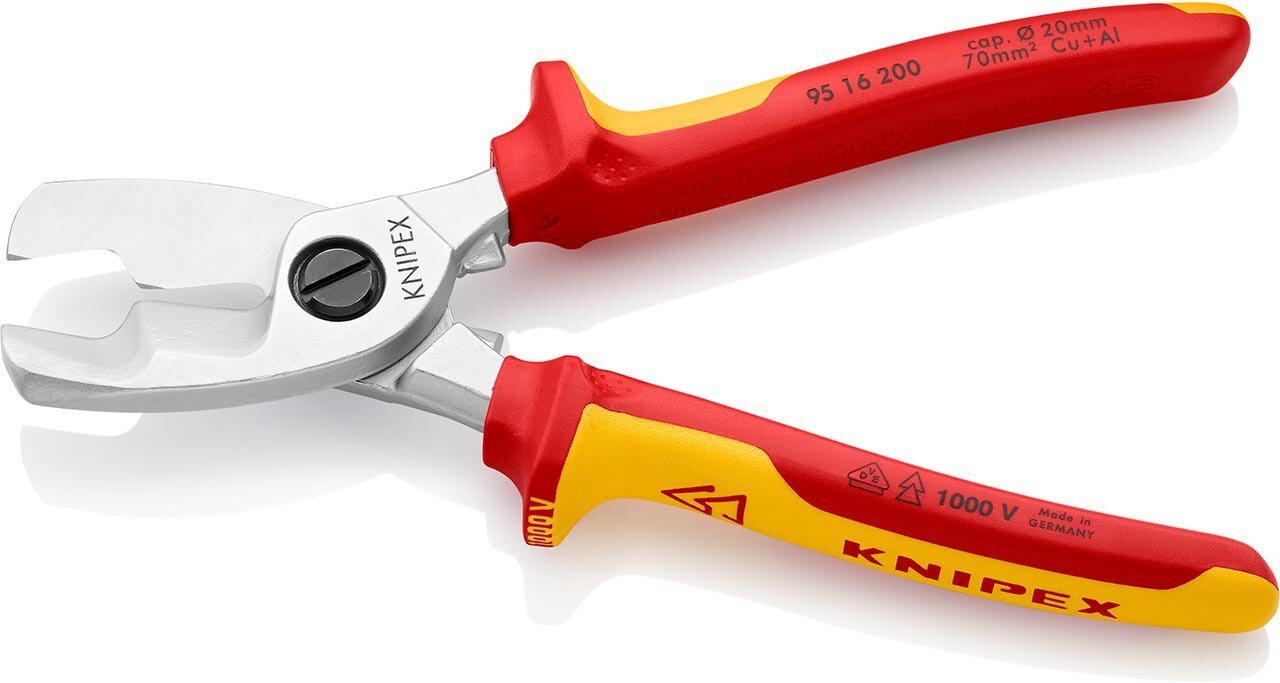

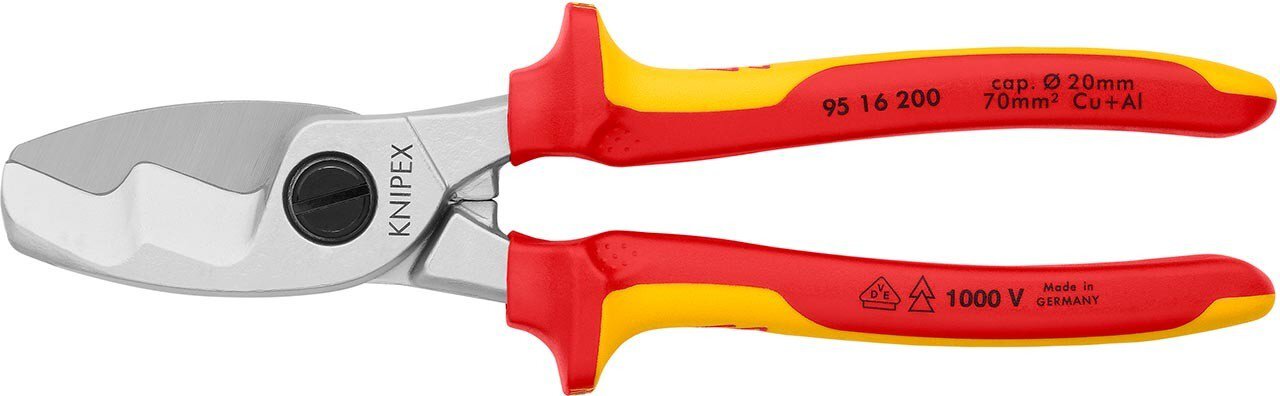

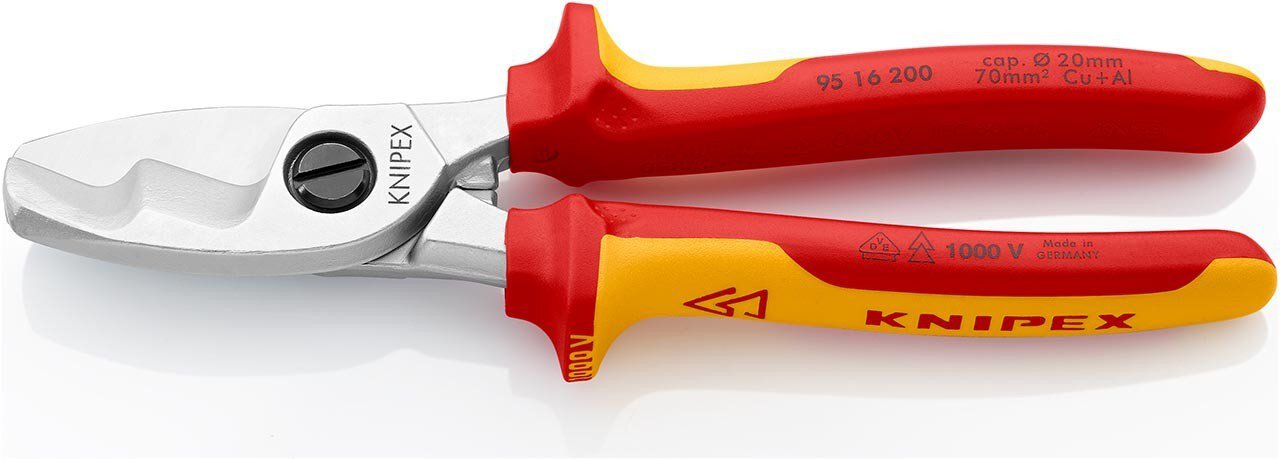

Cable shears with double cutting edge, chrome-plated, insulated, 200 mm

For cutting Cu and Al cables. Not suitable for steel wire and hard-drawn copper conductors. Hardened cutting edges with precision grinding. Cuts smoothly and cleanly without crushing. Adjustable screw joint, self-locking. Low force required due to favourable transmission ratios and special cutting geometry. Pinch protection prevents crushing injuries. Adjustable screw joint, self-locking. - Cutting value Cu-cable, stranded: 70mm² - Cutting value Cu-cable, stranded: Ø 20mm - AWG: 2 / 0 - VDE-tested: Yes

• For cutting Cu and Al cables
• Not suitable for steel wire and hard-drawn copper conductors
• Hardened cutting edges with precision grinding
• Cuts smoothly and cleanly without crushing
• Adjustable screw joint, self-locking
• Low force required due to favourable transmission ratios and special cutting geometry
• Pinch protection prevents crushing injuries
• Adjustable screw joint, self-locking
Item no.WL61894
Model95 16 200
ManufacturerKNIPEX
Manufacturer article no.95 16 200
Length220 mm
Width68 mm
Height19 mm
Length with packaging237 mm
Width with packaging67 mm
Height with packaging35 mm
Volume with packaging0.535 dm³
Sales unit1 piece
Content unit1 piece
Type of packagingsingle pack
StandardsDIN EN 60900 | IEC 60900
RoHS compliantno
Net weight (manufacturer)340 g
Surfacechrome-plated
VDEyes
ESD compliantno
Tool length200 mm
AWG2 / 0
Grip (expression)VDE | insulated with multi-component sheaths, VDE-tested
Cutting value copper cable, stranded70 mm²
Cutting value copper cable, stranded (diameter)20 mm
GPSR manufacturer dataKNIPEX-Werk
Oberkamper Strasse 13
DE-42349 Wuppertal-Cronenberg
www.knipex.de

€53.35

Available soon
Item No.WL61894
