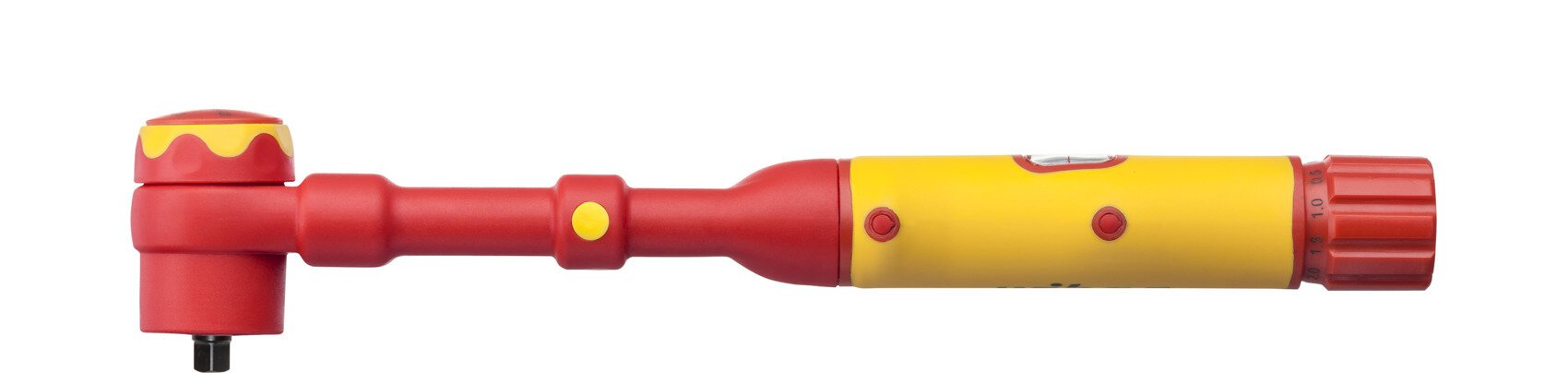

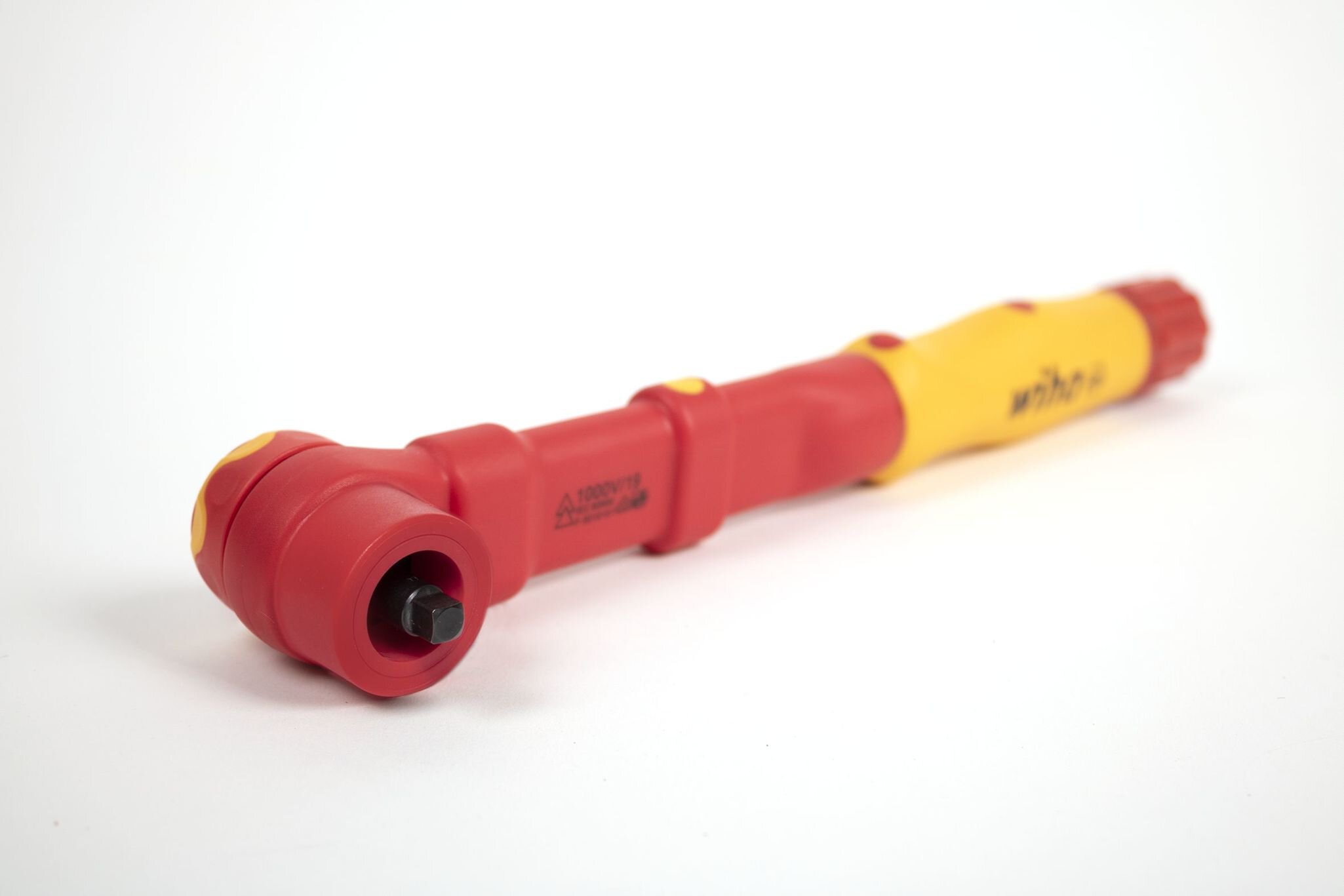

Torque wrench electric 1/4" for sockets, variable adjustable torque limit (43126)
Meets your needs: variable adjustable torque covers wide range of applications.
Increases your efficiency: The right torque protects you from material damage and rework.
Reduces your costs: The right torque protects you from warranty claims.
Offers you full protection: Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.
Application: Safe installation of terminals and sleeves, conductor connections, screwing of busbars. For working around live parts up to 1,000 V AC.

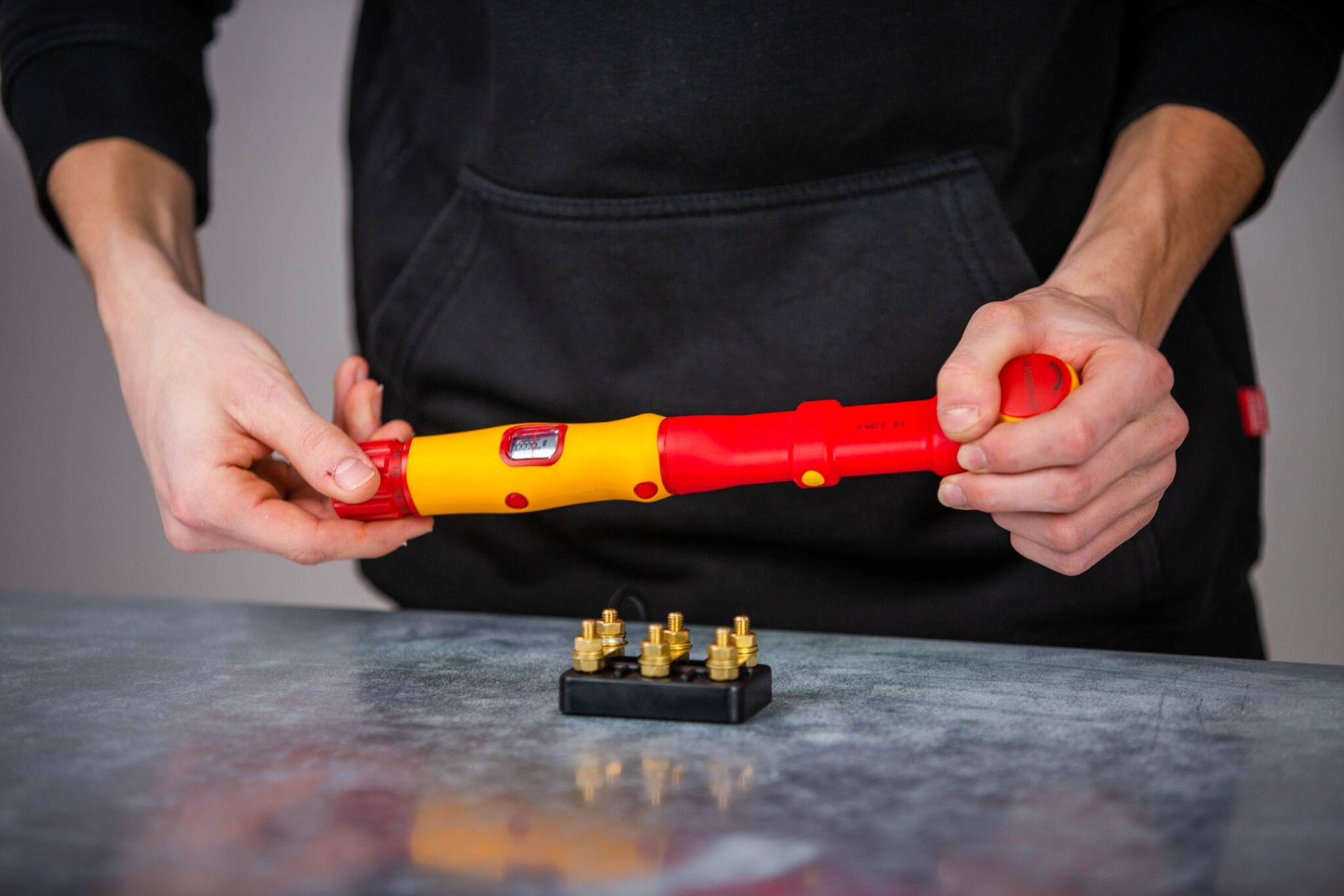

When working on live parts, the safety of the user is paramount. Especially when screwing on busbars in the distribution box, electricians are well equipped with the insulated torque wrench with 10° switching angle. The torque wrench with clockwise/anticlockwise rotation is thus ideal for powerful but controlled tightening. By pulling out and turning the end of the handle, the required torque value can be set manually by looking at the numerical scale. Furthermore, the sockets fitted to the 1/4" square drive provide a secure grip thanks to the ball lock. When tightened sensitively, the torque mechanism in the wrench kinks noticeably when the set torque value is reached. The insulated torque wrench is subjected to routine testing in accordance with the international standard EN/IEC 60900 and enables safe working around live parts up to 1,000 V AC.
Only to be used with Wiha insulated sockets.
DIN EN/IEC 60900.
• Hexagonal blade (inch): 1/4"
• Blister packaging: No
• ESD Article: No
• Inside square 1 (inch): 1/4"
• Torque range min (Nm): 5 Nm
• Torque range max (Nm): 25 Nm
• Torque range min - max (Nm): 5 - 25
• Torque range min (lbs): 44.25 lbs
• Torque range max (lbs): 221.27 lbs
• Torque range min - max (lbs): 44.25 - 221.27
• Tolerance: 4
• Outer diameter: 38 mm
• Handle diameter: 36 mm
• Total length (mm): 288 mm
• width (mm): 37.71 mm
• Height (mm): 49.05 mm
• length of lever arm: 200 mm
• With battery: No
Increases your efficiency: The right torque protects you from material damage and rework.
Reduces your costs: The right torque protects you from warranty claims.
Offers you full protection: Each tool individually tested at 10,000 V AC and approved for 1,000 V AC.
Application: Safe installation of terminals and sleeves, conductor connections, screwing of busbars. For working around live parts up to 1,000 V AC.
When working on live parts, the safety of the user is paramount. Especially when screwing on busbars in the distribution box, electricians are well equipped with the insulated torque wrench with 10° switching angle. The torque wrench with clockwise/anticlockwise rotation is thus ideal for powerful but controlled tightening. By pulling out and turning the end of the handle, the required torque value can be set manually by looking at the numerical scale. Furthermore, the sockets fitted to the 1/4" square drive provide a secure grip thanks to the ball lock. When tightened sensitively, the torque mechanism in the wrench kinks noticeably when the set torque value is reached. The insulated torque wrench is subjected to routine testing in accordance with the international standard EN/IEC 60900 and enables safe working around live parts up to 1,000 V AC.
Only to be used with Wiha insulated sockets.
DIN EN/IEC 60900.
• Hexagonal blade (inch): 1/4"
• Blister packaging: No
• ESD Article: No
• Inside square 1 (inch): 1/4"
• Torque range min (Nm): 5 Nm
• Torque range max (Nm): 25 Nm
• Torque range min - max (Nm): 5 - 25
• Torque range min (lbs): 44.25 lbs
• Torque range max (lbs): 221.27 lbs
• Torque range min - max (lbs): 44.25 - 221.27
• Tolerance: 4
• Outer diameter: 38 mm
• Handle diameter: 36 mm
• Total length (mm): 288 mm
• width (mm): 37.71 mm
• Height (mm): 49.05 mm
• length of lever arm: 200 mm
• With battery: No
| Item no. | WL72582 |
| Alternative article name | 246177 |
| Manufacturer | WIHA |
| Manufacturer article no. | 43126 |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Incl. battery | no |
| Standards | DIN EN/IEC 60900. |
| Product series | 2822 |
| Gross weight (manufacturer) | 590 g |
| VDE | yes |
| ESD compliant | no |
| Packaging dimensions | piece |
| GPSR manufacturer data | Wiha Werkzeuge GmbH Obertalstraße 3-7 DE-78136 Schonach www.wiha.com |
€439.37
Available soon
Item No.WL72582
