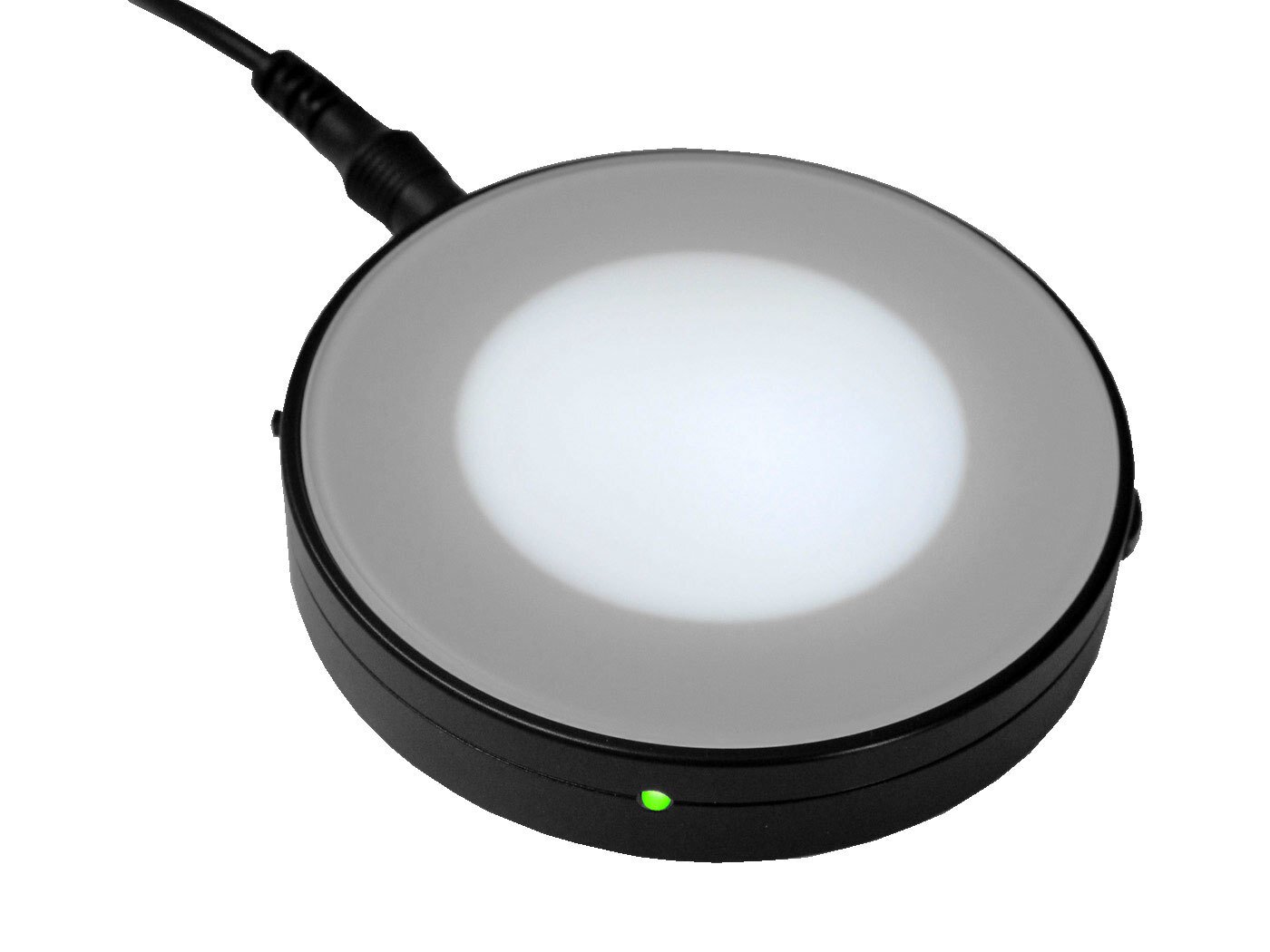

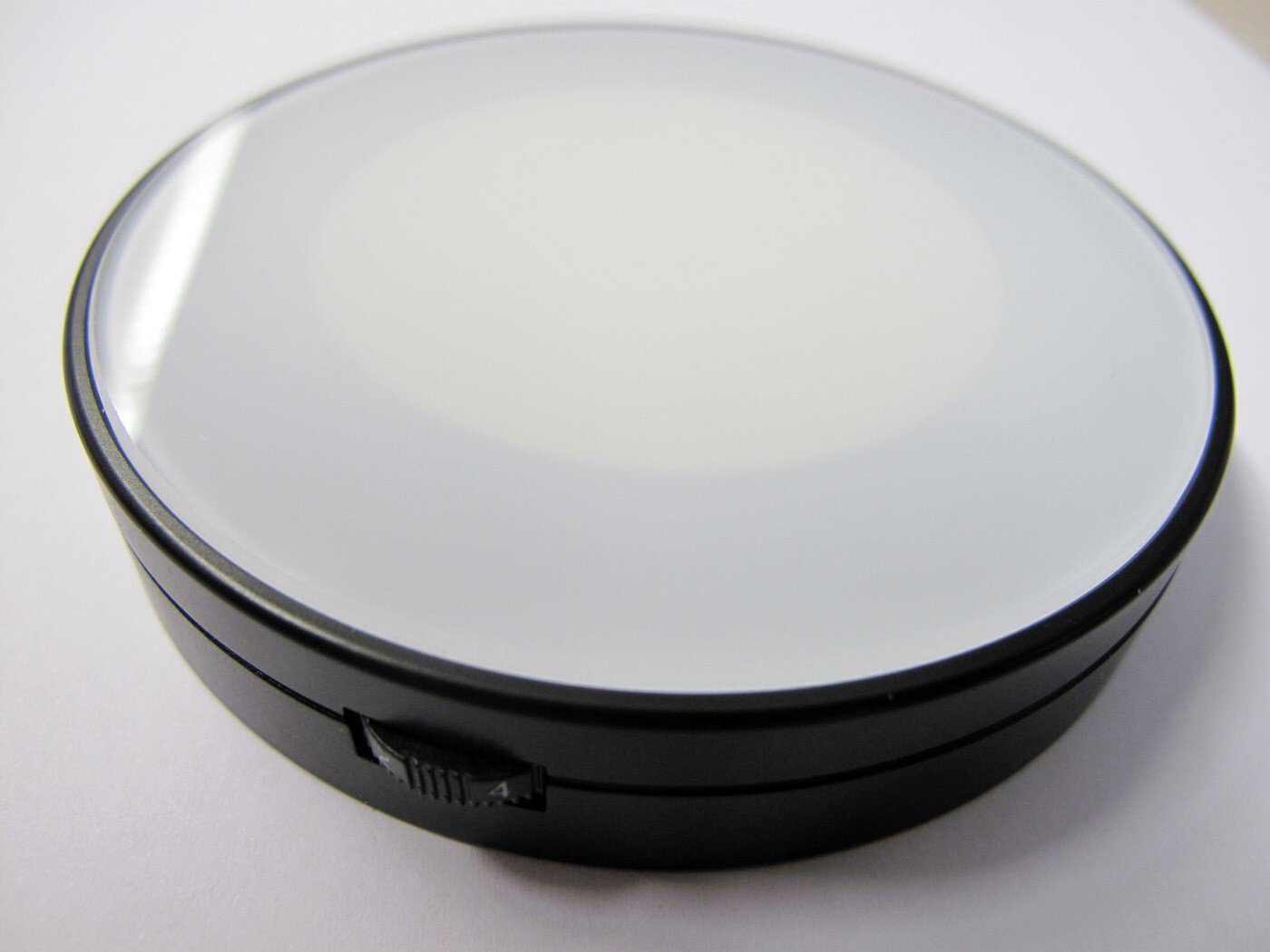

Easy LED transmitted light system Ø 84mm
Transmitted light system (DLS) with diameter = 84 mm.
including power supply (100-240V) and integrated controller.
On/off switch, stepless intensity control, power supply connection and status LED are located directly on the housing.
Color temperature of 5600K
Illuminated surface with a diameter of 50mm, up to 12000 cd/m²
Transmitted light: yes
Connection: DC socket for pin Ø 1.7mm
Number of LEDs: 39
Bright field: yes
Illuminated area: Ø 50mm
Controller: integrated, dimmable 0%-100%
Average LED service life (h): 50,000 h
Color temperature in °K: 5600
Max. Luminance: 12,000 cd/m²
Current: 400mA
Supply voltage: 12 V DC
including power supply (100-240V) and integrated controller.
On/off switch, stepless intensity control, power supply connection and status LED are located directly on the housing.
Color temperature of 5600K
Illuminated surface with a diameter of 50mm, up to 12000 cd/m²
Transmitted light: yes
Connection: DC socket for pin Ø 1.7mm
Number of LEDs: 39
Bright field: yes
Illuminated area: Ø 50mm
Controller: integrated, dimmable 0%-100%
Average LED service life (h): 50,000 h
Color temperature in °K: 5600
Max. Luminance: 12,000 cd/m²
Current: 400mA
Supply voltage: 12 V DC
| Item no. | WL73471 |
| Manufacturer | SCHOTT |
| Manufacturer article no. | 600.400 |
| Length | 84 mm |
| Width | 84 mm |
| Height | 16 mm |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Colour | black |
| Incl. battery | no |
| Light source | LED |
| Lamp or magnifying glass type | LED light |
| Luminous flux | 73.9 lm |
| Number of LEDs | 39 |
| Protection class | No information provided |
| Connection values | DC socket for pin Ø 1.7mm |
| Dimmable | yes |
| ESD compliant | no |
| GPSR manufacturer data | SCHOTT AG Hattenbergstrasse 10 DE-55122 Mainz www.schott.com |
€500.00
Available soon
Item No.WL73471
