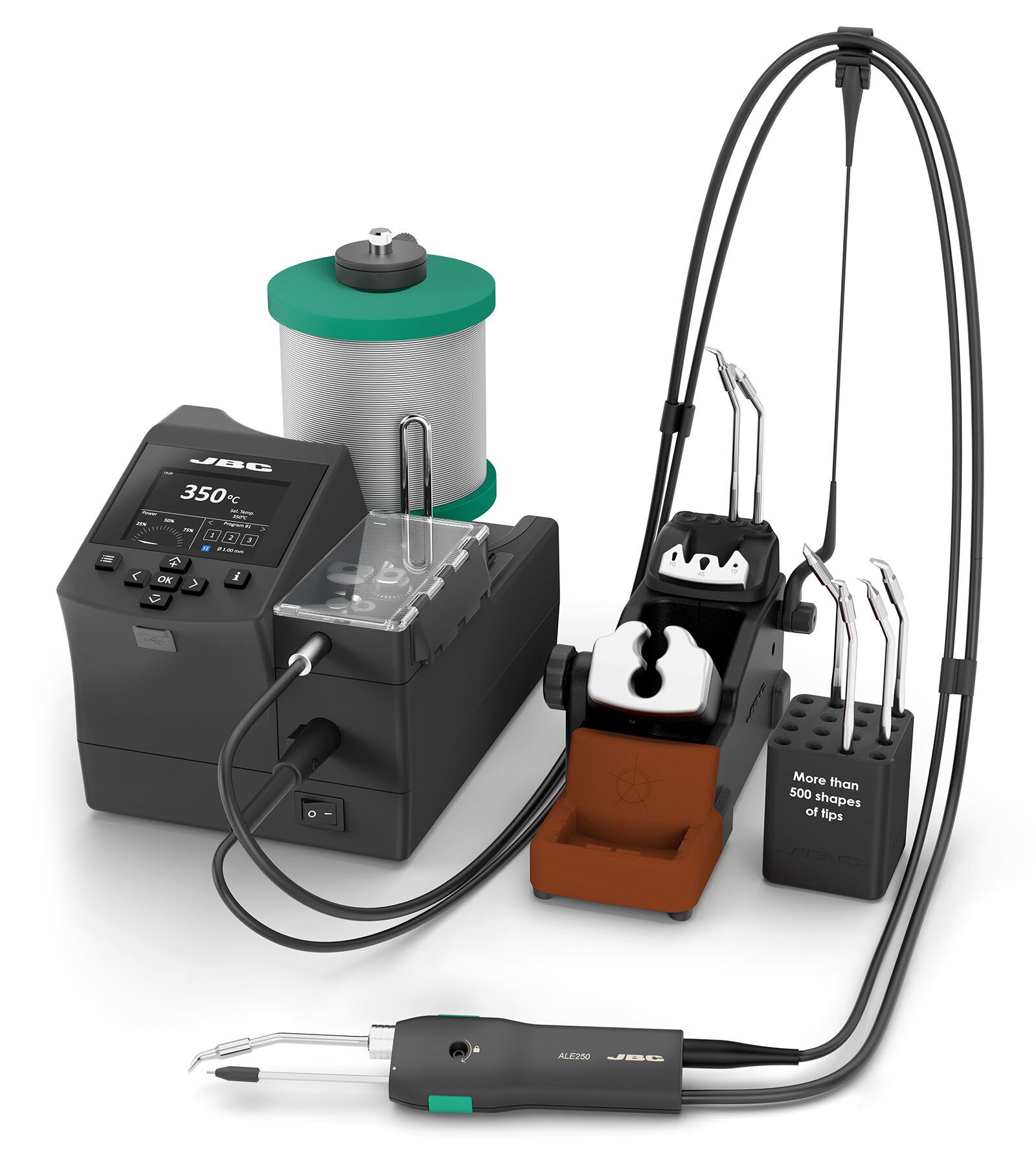

ESD soldering station ALE250 with automatic wire feeder, 230 V

Ideal for soldering processes that require high productivity.

It contains the JBC Most Efficient Soldering System.

This station is supplied with:

• The new version of the ALE250 soldering iron with automatic feed, which features dynamic tool adjustment and is ideal for reaching different solder joints. It works with the C250, C250E and C245L cartridges.
• GALE10V feeds solder wire with a diameter of Ø1 mm and is compatible with solder wires from Ø 0.4 mm to Ø 1.8 mm if the corresponding solder wire guide set is used. It is equipped with a solder wire perforation that ensures a better flow of the solder wire.

flow of the flux and better outgassing, thus avoiding protrusions and foreign objects (FOD).
This station can hold a solder spool of up to 2 kg / 4.40 lb.

• 3 different working modes: continuous mode, discontinuous mode and program mode, which allows the configuration of the speed and length of the dosed wire.
• Connectivity: Data download, remote control for traceability and software updates.
• Nominal power: 180 W
• Peak power: 150 W
• Temperature range: 90°C - 450°C
• Idle temperature stability: ±1.5 ºC
• Temperature accuracy: ±3%
• Solder wire diameter: 1.0 mm
• max. wire length: 250mm
• min. wire length: 0.5mm
