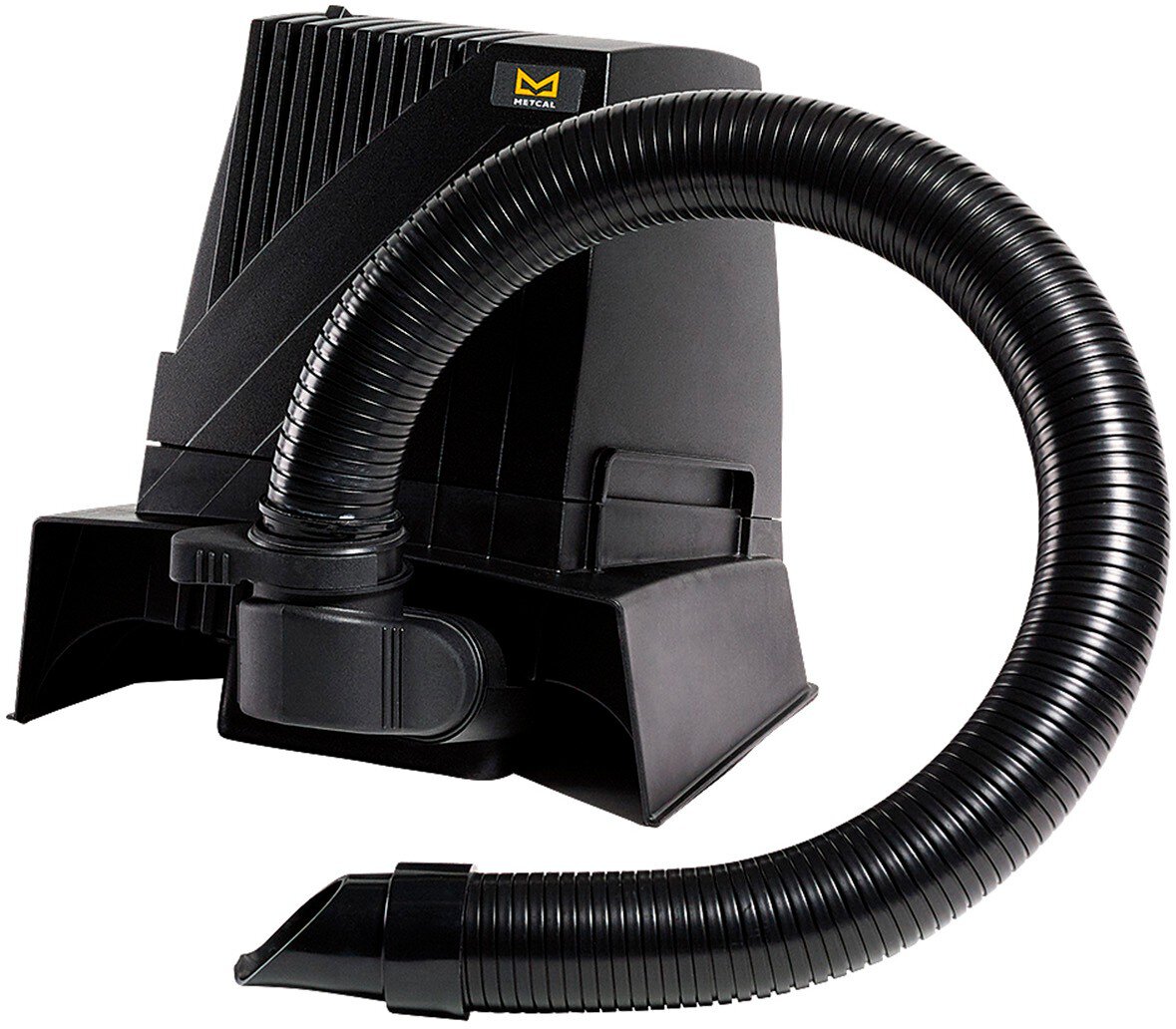

Extraction table-top unit for soldering fumes, pre-gas volume extraction, 85 m³/h, 100-240 V

The BVX-103 is a single user, PRE-GAS volume extraction system designed to be used directly on the workbench. The unit is designed with an innovative adapter which allows the user to choose between plenum or arm extraction options.

• for single place extraction
• Portable single smoke extraction system for one user
• Low noise device
• No external channels or compressors required
• The device fits easily on any table top or under bench.
• 12" wide (300mm) plenum (12")

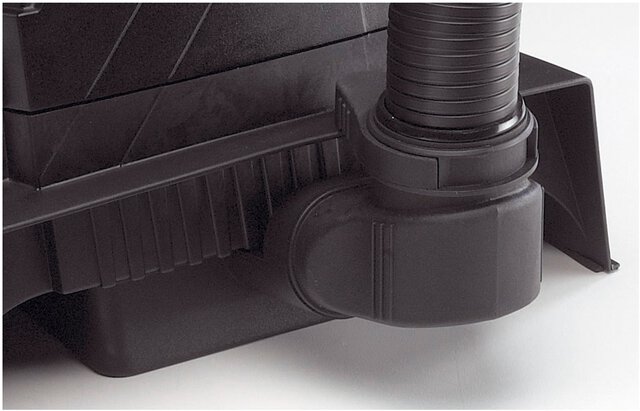

• Innovative adapter transforms the plenum into an arm.
• Strong 85m3/h. air throughput
• Immediate extraction of vapours, particles and vapours
• Two filtration configurations: strong soldering and light dust or light organic solvents and adhesive applications.
• Two-color LED light indicates when filters are blocked and need to be replaced.

Item no.	WL24508
Model	BVX-103
Manufacturer	OKI
Manufacturer article no.	BVX-103
Scope of delivery	unit filter set BVX-ADT Arm to Plenum Adapter BVX arm (760mm, 29.50")
Sales unit	1 piece
Content unit	1 piece
Incl. battery	no
ESD compliant	yes
GPSR manufacturer data	OK International Ltd Eagle Close, Chandlers Ford GB-SO53 4NF Hampshire www.ok-international.com
