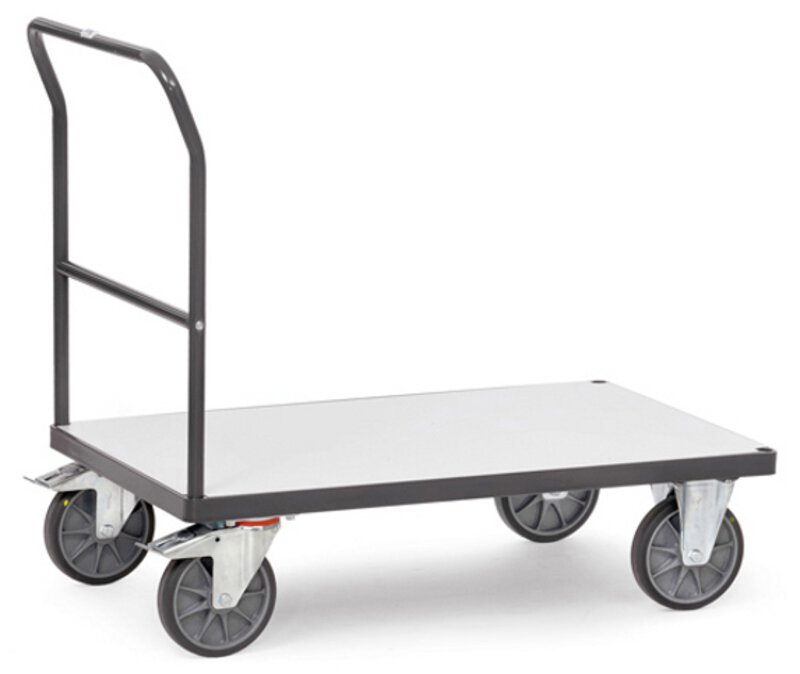

ESD push handle trolley, 1 shelf, 600 kg, 1000 x 700 mm

• Electrically conductive design
• Welded steel tube and profile steel
• electrically conductive powder-coated
• slate grey RAL 7015
• Screw and plug-in construction
• 1 Floor made of electrically conductive wood-based panel according to DIN 68765 in light grey
• 2 swivel castors and 2 fixed castors
• Wheels with TPE-ESD tyres (thermoplastic elastomer)
• electrically conductive
• Hubs with precision deep groove ball bearings
• Very low starting, rolling and swivel resistance
• Quiet running on level floors
• Tyres not chalking (non-marking)
• Castor brakes, according to the European standard EN 1757-3

Item no.	WL34207
Manufacturer	FETRA
Manufacturer article no.	9502
Length	1120 mm
Width	709 mm
Height	990 mm
Sales unit	1 piece
Content unit	1 piece
Manufacturer colour information	slate grey
Colour	grey
Material	wood-based panel
Material (frame)	sectional steel
Incl. battery	no
Tare weight	33 kg
Type of transport device	handlebar cart
Load capacity	600 kg
Number of fixed castors	2
Number of swivel castors	2
Tires	TPE ESD
Tire diameter	200 mm
Bearing (tires)	ball bearing
Length of the loading area	1000 mm
Width of the loading area	700 mm
Loading height	276 mm
ESD compliant	yes
GPSR manufacturer data	fetra Fechtel Transportgeräte GmbH Industriestraße 17-21 DE-33829 Bogenhausen www.fetra.de
