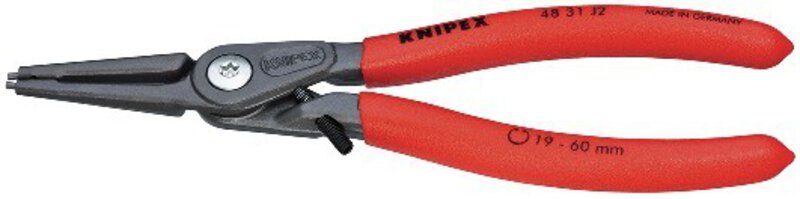

Precision circlip pliers for inner rings in bores with overstretch protection, gray atramentized, 180 mm

Precision circlip pliers with high load capacity in continuous use: up to 10 times longer service life compared to turned tips. With inserted tips for safe working. Bolted joint: precise, backlash-free operation of the pliers. Anti-slip plastic coating on the handles. With overstretch protection (adjustable by stop). Adjustment by means of hexagon socket screw. Ideal for series production, as overstretching of the rings is effectively prevented. DIN 5256 C; straight tips. with expansion stop for standard-compliant assembly in accordance with DIN 472. the adjustable stop screw prevents overstretching of the rings. - shape: 3 - capacity for bore diameters: Ø 19 - 60mm - tips (diameter): Ø 1,8mm

• Bolted joint: precise, backlash-free operation of the pliers
• Anti-slip plastic coating on the handles

Item no.	WL61578
Model	48 31 J2
Manufacturer	KNIPEX
Manufacturer article no.	48 31 J2
Length	190 mm
Width	46 mm
Height	13 mm
Length with packaging	206 mm
Width with packaging	86 mm
Height with packaging	37 mm
Volume with packaging	0.67 dm³
Sales unit	1 piece
Content unit	1 piece
Type of packaging	single pack
Standards	DIN 5256 C
RoHS compliant	no
Net weight (manufacturer)	175 g
Surface	grey atramentised
VDE	no
ESD compliant	no
Diameter (tip)	1.8 mm
Tool length	180 mm
Grip (expression)	covered with anti-slip plastic
Type of pliers	snap ring pliers
GPSR manufacturer data	KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
