Cable shears with double cutting edge, chrome-plated, dip-insulated, 200 mm
For cutting Cu and Al cables. Not suitable for steel wire and hard-drawn copper conductors. Hardened cutting edges with precision grinding. Cuts smoothly and cleanly without crushing. By dividing the cutting process into pre-cut (insulating jacket in the front cutting area) and post-cut (conductor in the rear cutting area), cables up to Ø 20 mm can be cut in one-hand operation. Low power requirement due to favourable transmission ratios and special cutting geometry. Pinch protection prevents crushing injuries. Adjustable screw joint, self-locking. - Cutting value Cu-cable, stranded: 70mm² - Cutting value Cu-cable, stranded: Ø 20mm - AWG: 2 / 0 - VDE-tested: Yes
• For cutting Cu and Al cables
• Not suitable for steel wire and hard-drawn copper conductors
• Hardened cutting edges with precision grinding
• Cuts smoothly and cleanly without crushing

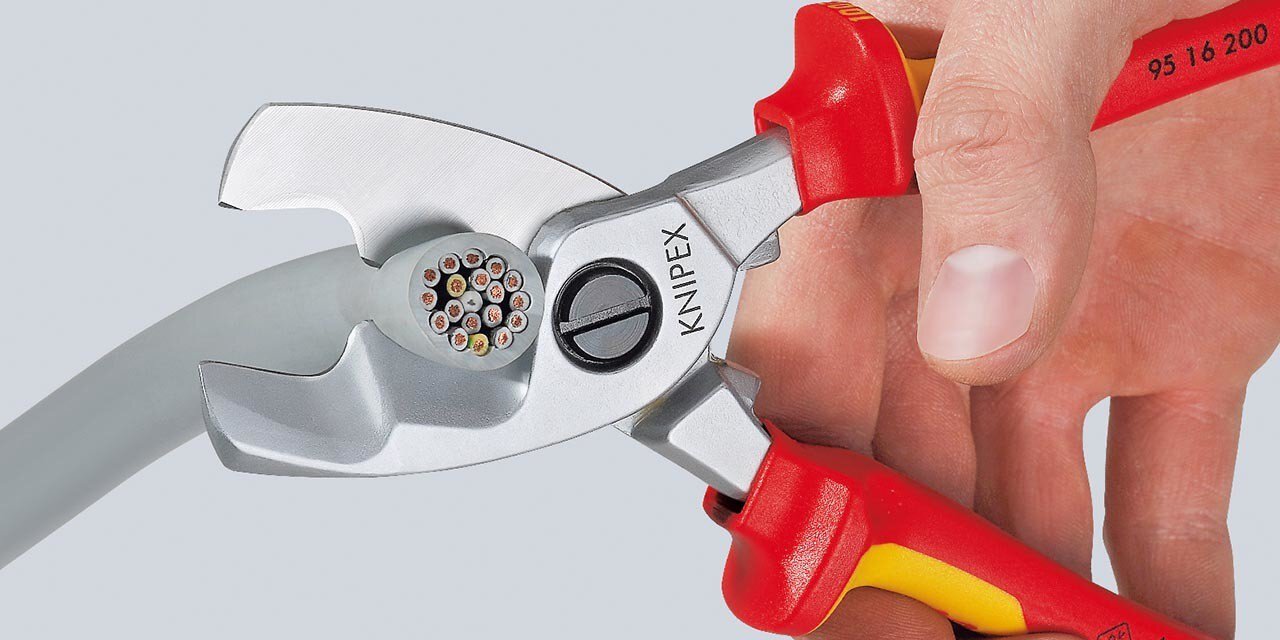

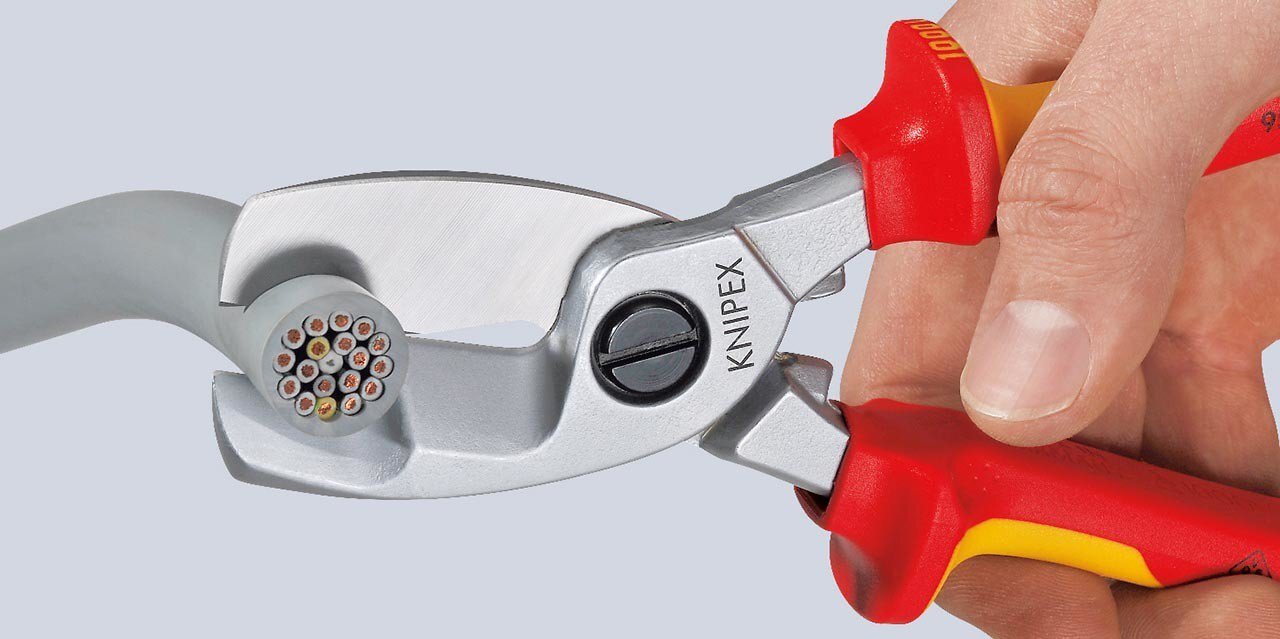

• By dividing the cutting process into pre-cut (insulating sheath in the front cutting area) and post-cut (conductor in the rear cutting area), cables up to Ø 20 mm can be cut in one-hand operation
• Low power requirement due to favourable transmission ratios and special cutting geometry
• Pinch protection prevents crushing injuries
• Adjustable screw joint, self-locking
• For cutting Cu and Al cables
• Not suitable for steel wire and hard-drawn copper conductors
• Hardened cutting edges with precision grinding
• Cuts smoothly and cleanly without crushing
• By dividing the cutting process into pre-cut (insulating sheath in the front cutting area) and post-cut (conductor in the rear cutting area), cables up to Ø 20 mm can be cut in one-hand operation
• Low power requirement due to favourable transmission ratios and special cutting geometry
• Pinch protection prevents crushing injuries
• Adjustable screw joint, self-locking
| Item no. | WL61895 |
| Model | 95 17 200 |
| Manufacturer | KNIPEX |
| Manufacturer article no. | 95 17 200 |
| Length | 210 mm |
| Width | 80 mm |
| Height | 34 mm |
| Length with packaging | 252 mm |
| Width with packaging | 86 mm |
| Height with packaging | 36 mm |
| Volume with packaging | 0.744 dm³ |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Type of packaging | single pack |
| Standards | DIN EN 60900 | IEC 60900 |
| RoHS compliant | no |
| Net weight (manufacturer) | 414 g |
| Surface | chrome-plated |
| VDE | yes |
| ESD compliant | no |
| Tool length | 200 mm |
| AWG | 2 / 0 |
| Grip (expression) | VDE | dip-insulated, VDE-tested |
| Cutting value copper cable, stranded | 70 mm² |
| Cutting value copper cable, stranded (diameter) | 20 mm |
| GPSR manufacturer data | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
€57.97
Available soon
Item No.WL61895
