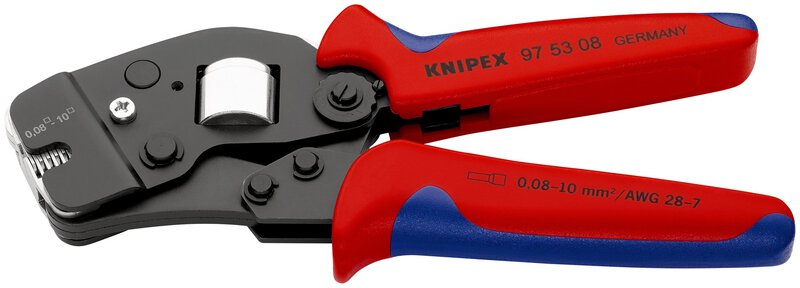

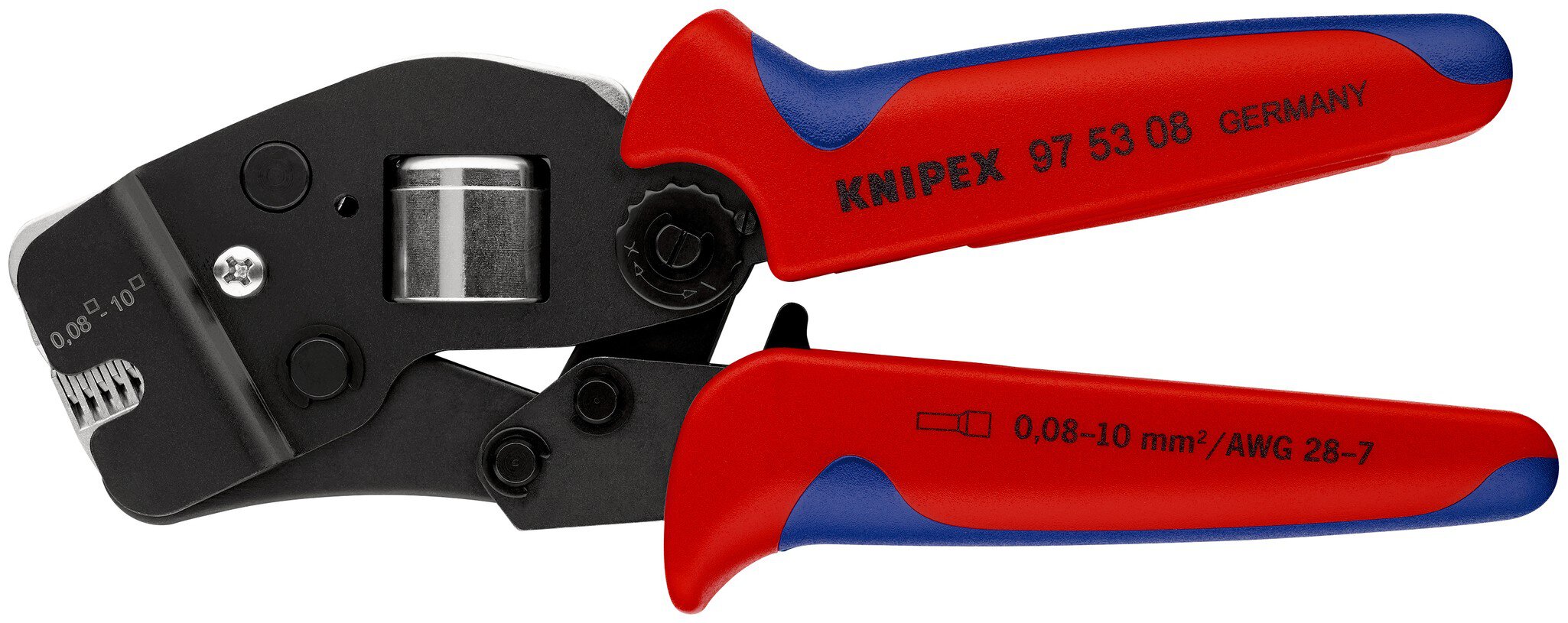

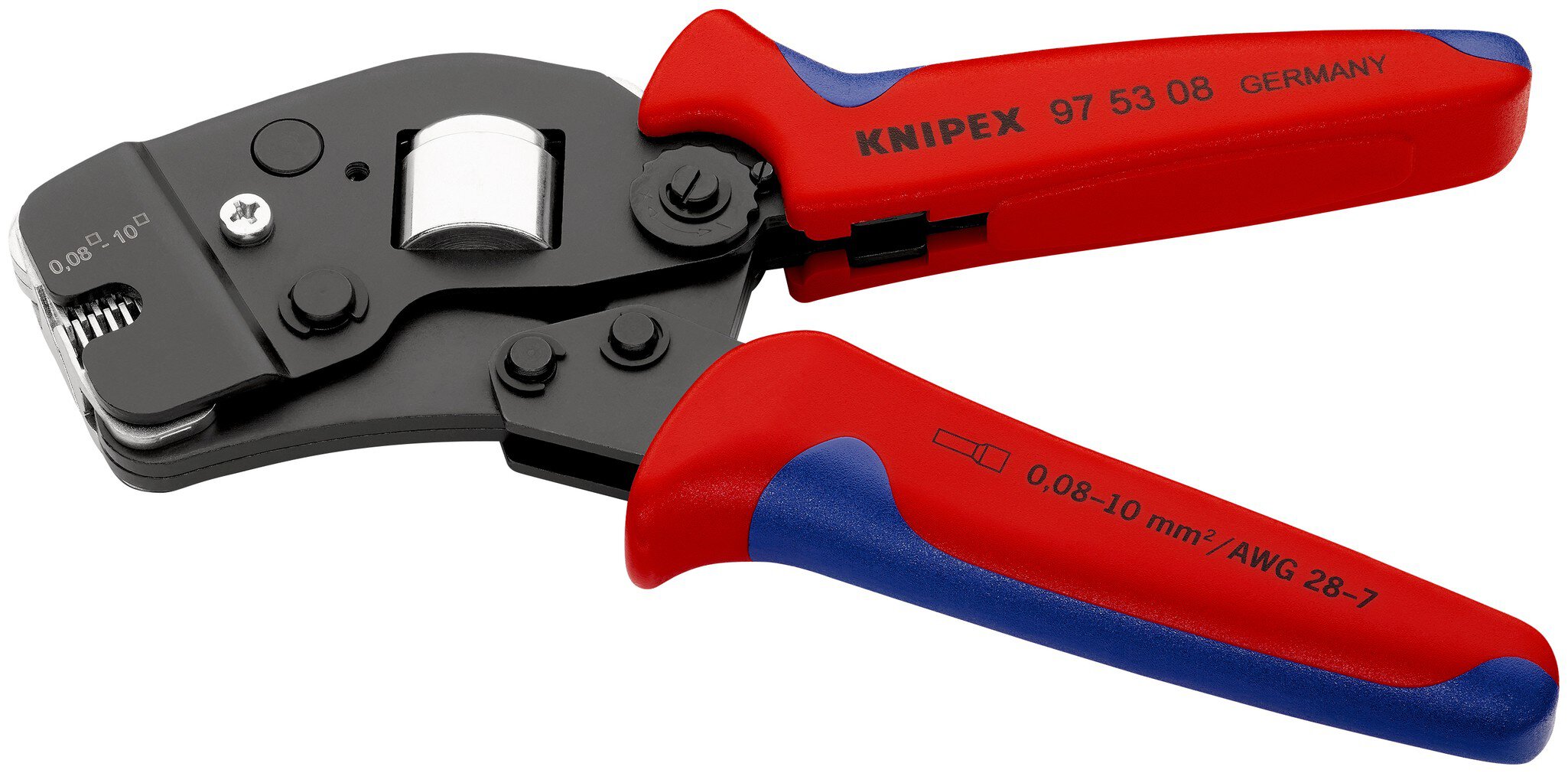

Self-adjusting crimping pliers for ferrules with front entry, burnished, 190 mm, sales packaging

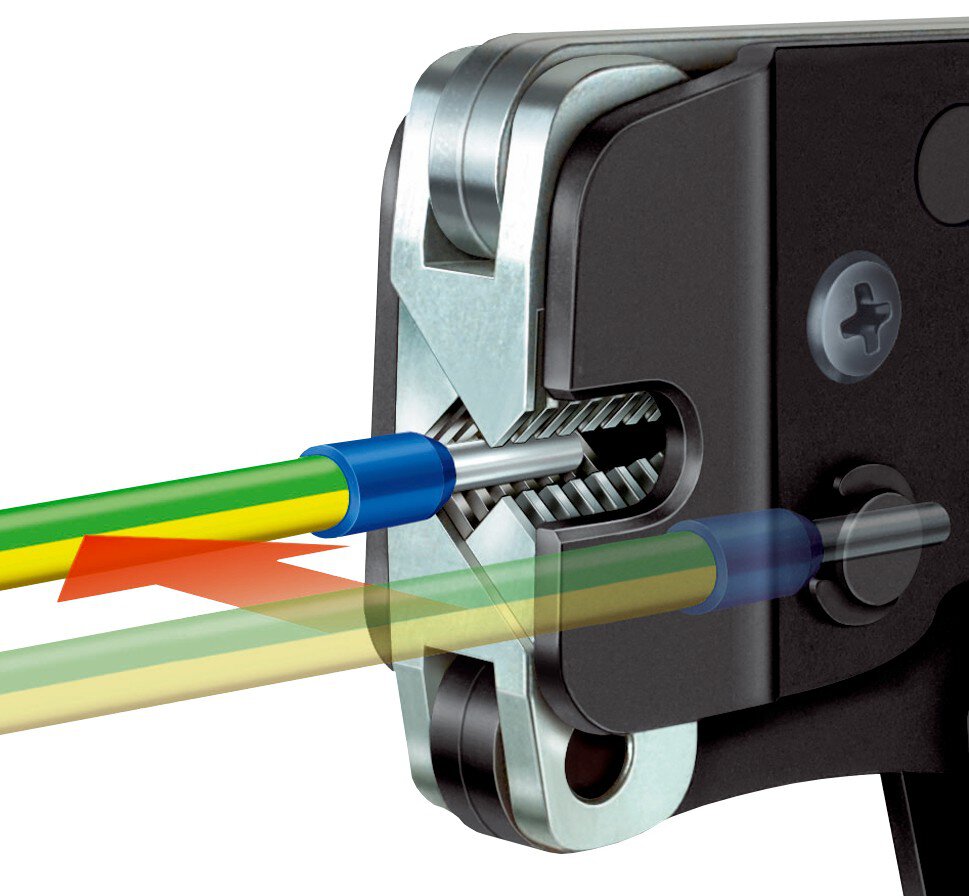

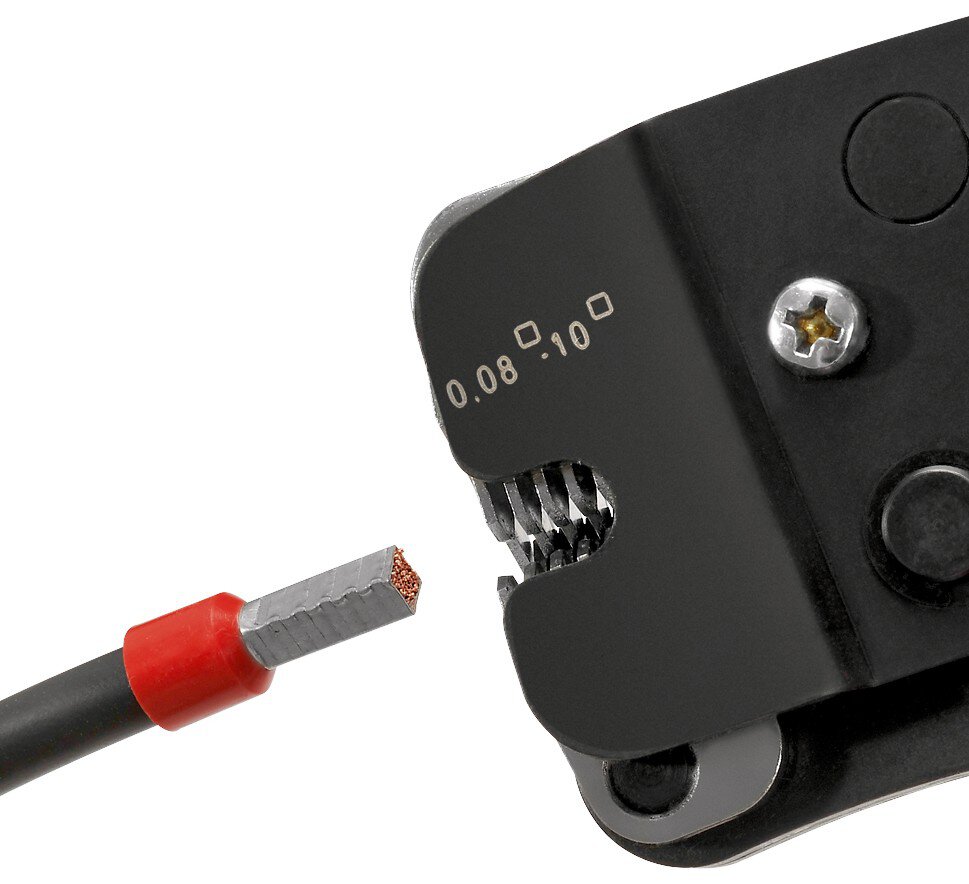

Self-adjusting crimping pliers for wire end ferrules For crimping wire end ferrules according to DIN 46228 Parts 1 + 4. Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to using the wrong crimping insert. Frontal insertion of the wire-end ferrules into the tool. Consistently high crimp quality due to positive ratchet (can be unlocked). Crimp pressure is precisely set (calibrated) at the factory, adjustable. Force amplification by knee lever for fatigue-free working. High operating comfort due to handy design and low weight. Crimping from 0.08 to 10.0 mm² in one profile. Wire end ferrules up to 2.5 mm² can be fed in parallel from the side. especially suitable for all twin wire end ferrules up to 2 x 4 mm² or 2 x AWG 10. - Application: Wire end ferrules - Capacity square millimetres: 0.08 - 10mm² - Number of nests: 1 - AWG: 28 - 7.
• For crimping wire end ferrules according to DIN 46228 part 1 + 4
• Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to use of the wrong crimp insert

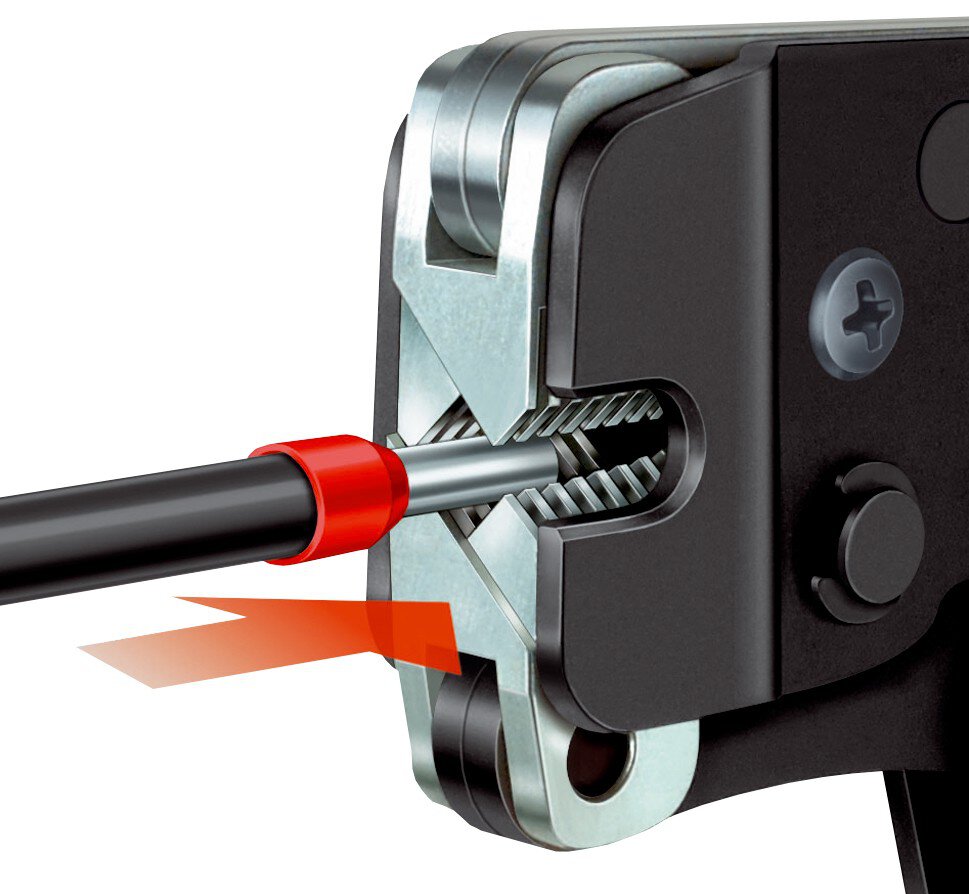

• Frontal insertion of the wire end ferrules into the tool
• Consistently high crimp quality due to positive ratchet (can be unlocked)
• Crimp pressure is precisely set (calibrated) at the factory, adjustable
• Force amplification through toggle lever for low-fatigue work
• High operating comfort due to handy design and low weight
• For crimping wire end ferrules according to DIN 46228 part 1 + 4
• Self-adjusting adjustment to the required wire end ferrule size: no crimping errors due to use of the wrong crimp insert
• Frontal insertion of the wire end ferrules into the tool
• Consistently high crimp quality due to positive ratchet (can be unlocked)
• Crimp pressure is precisely set (calibrated) at the factory, adjustable
• Force amplification through toggle lever for low-fatigue work
• High operating comfort due to handy design and low weight
| Item no. | WL62024 |
| Model | 97 53 08 SB |
| Manufacturer | KNIPEX |
| Manufacturer article no. | 97 53 08 SB |
| Length | 192 mm |
| Width | 77 mm |
| Height | 22 mm |
| Length with packaging | 272 mm |
| Width with packaging | 115 mm |
| Height with packaging | 30 mm |
| Volume with packaging | 0.938 dm³ |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Type of packaging | blister packaging |
| RoHS compliant | no |
| Net weight (manufacturer) | 525 g |
| Surface | burnished |
| VDE | no |
| Crimping application | Wire end ferrules |
| Number of crimp nests | 1 |
| Crimp profile | Square crimp automatic |
| ESD compliant | no |
| Tool length | 190 mm |
| AWG | 28 - 7 |
| Grip (expression) | with multi-component sleeves |
| Type of pliers | automatic crimping tool |
| GPSR manufacturer data | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
