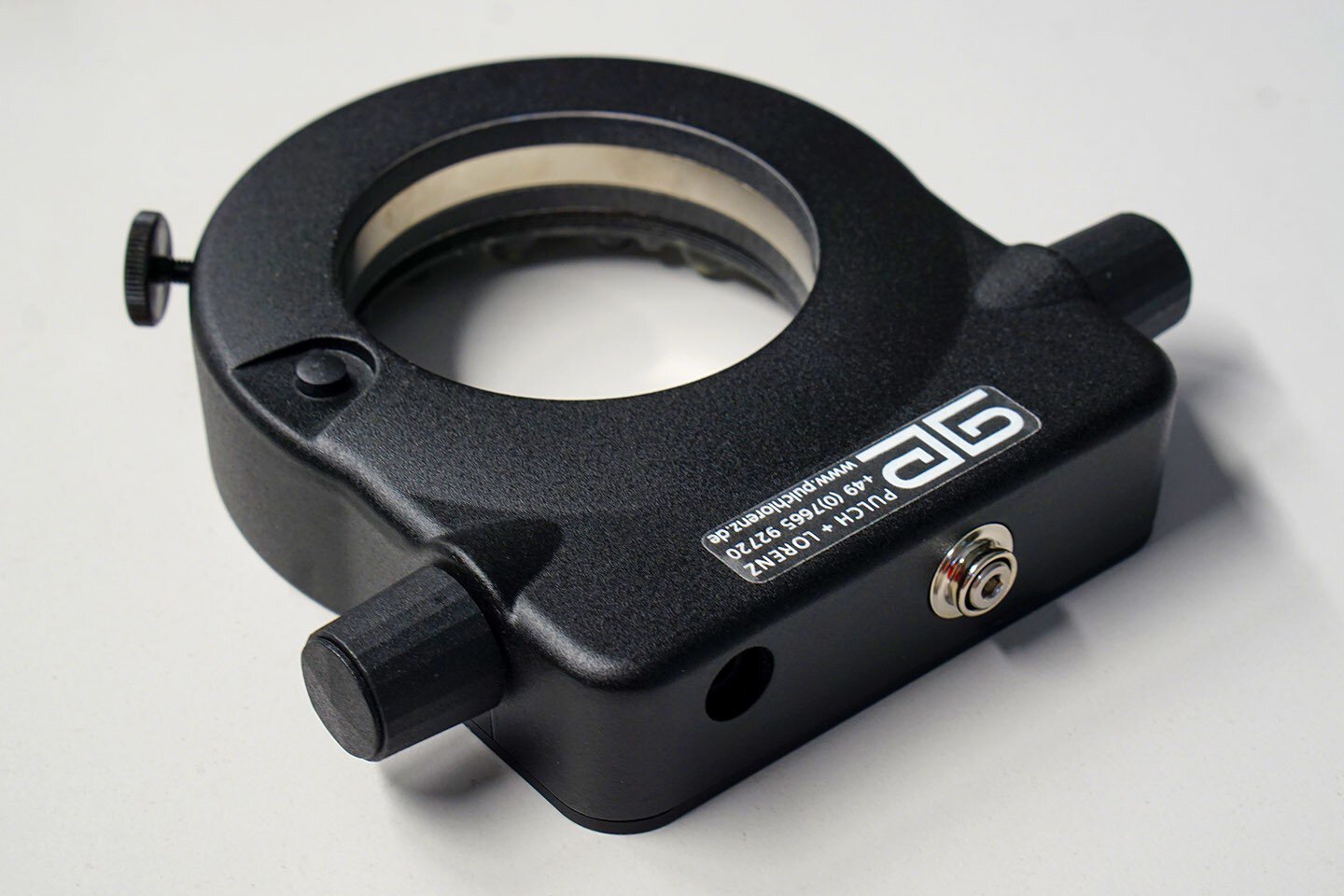

High Power LED ring light (HPRL), segmentable (D)

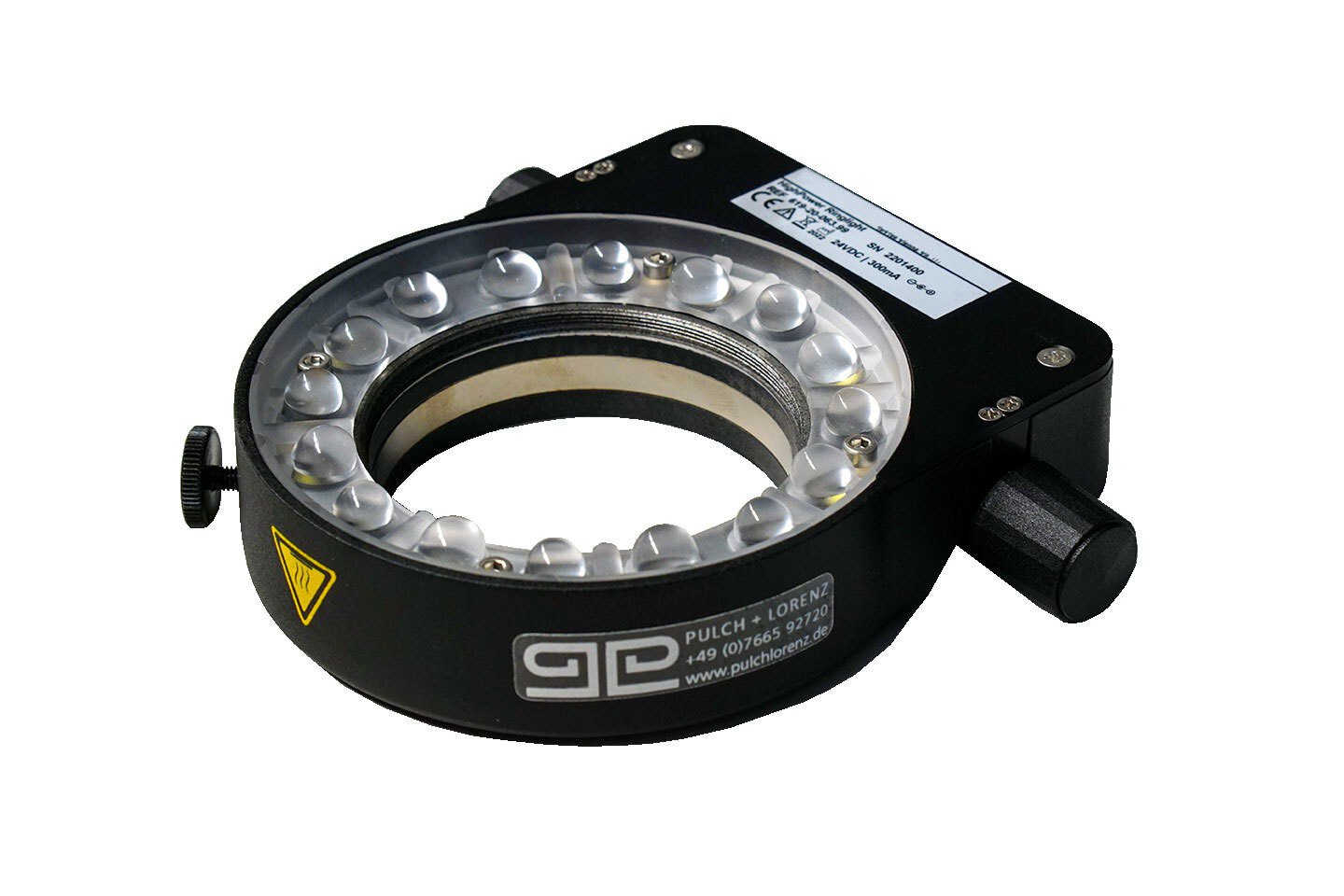

• 8 high-power LEDs with ring optics, optics can be mounted for near or far range
• Close-range position: FWD 45-130 mm, illuminance typ. 220 klx (@ FWD 50 mm)
• Long-range position: FWD 80-300 mm, illuminance typ. 170 klx (@ FWD 90 mm)
• Color temperature approx. 5800 K, service life approx. 25,000 h (lumen maintenance 70 %)
• Ergonomic operation on the housing: no separate controller required
• Rotary encoder 1 for setting segment modes, rotation in 45° steps and autorotation
• Rotary encoder 2 for dimming, saving and calling up a lighting setting
• Separate on/off switch
• Segment modes: full, half, quarter circle, 2 opposite quarter circles
• Interface to lens D=66 mm
• ESD socket for discharging electrostatic charges
• Internal thread for mounting accessories (polarizing filter set, diffuser)
• incl. wide-range power supply unit and 4 mains adapters EU, US, CH, JP
• Close-range position: FWD 45-130 mm, illuminance typ. 220 klx (@ FWD 50 mm)
• Long-range position: FWD 80-300 mm, illuminance typ. 170 klx (@ FWD 90 mm)
• Color temperature approx. 5800 K, service life approx. 25,000 h (lumen maintenance 70 %)
• Ergonomic operation on the housing: no separate controller required
• Rotary encoder 1 for setting segment modes, rotation in 45° steps and autorotation
• Rotary encoder 2 for dimming, saving and calling up a lighting setting
• Separate on/off switch
• Segment modes: full, half, quarter circle, 2 opposite quarter circles
• Interface to lens D=66 mm
• ESD socket for discharging electrostatic charges
• Internal thread for mounting accessories (polarizing filter set, diffuser)
• incl. wide-range power supply unit and 4 mains adapters EU, US, CH, JP
| Item no. | WL73381 |
| Manufacturer | ZEISS |
| Manufacturer article no. | 417040-9300-000 |

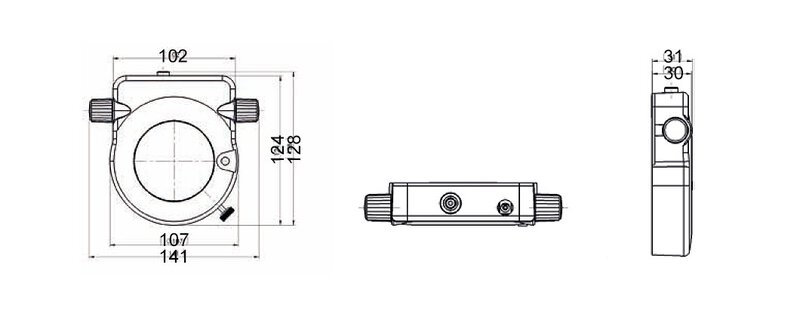

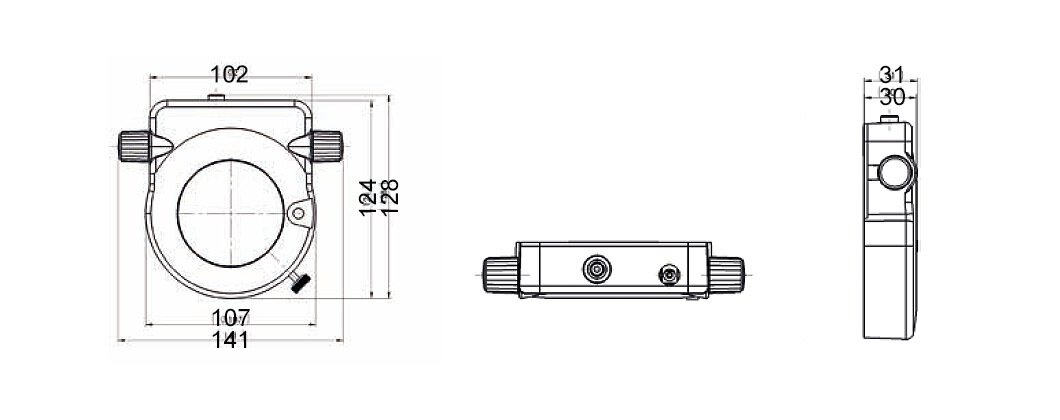

| Length | 141 mm |
| Width | 128 mm |
| Height | 31 mm |
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Colour | black |
| Incl. battery | no |
| Light source | LED |
| Lamp or magnifying glass type | LED light |
| Number of LEDs | 8 |
| Protection class | No information provided |
| Connection values | Interface to lens D=66mm, ESD socket to dissipate electrostatic charge |
| Dimmable | yes |
| ESD compliant | no |
| GPSR manufacturer data | Carl Zeiss Micromaging GmbH Königsallee 7-9 DE-37081 Göttingen www.zeiss.de |
€1,203.26
Available soon
Item No.WL73381
