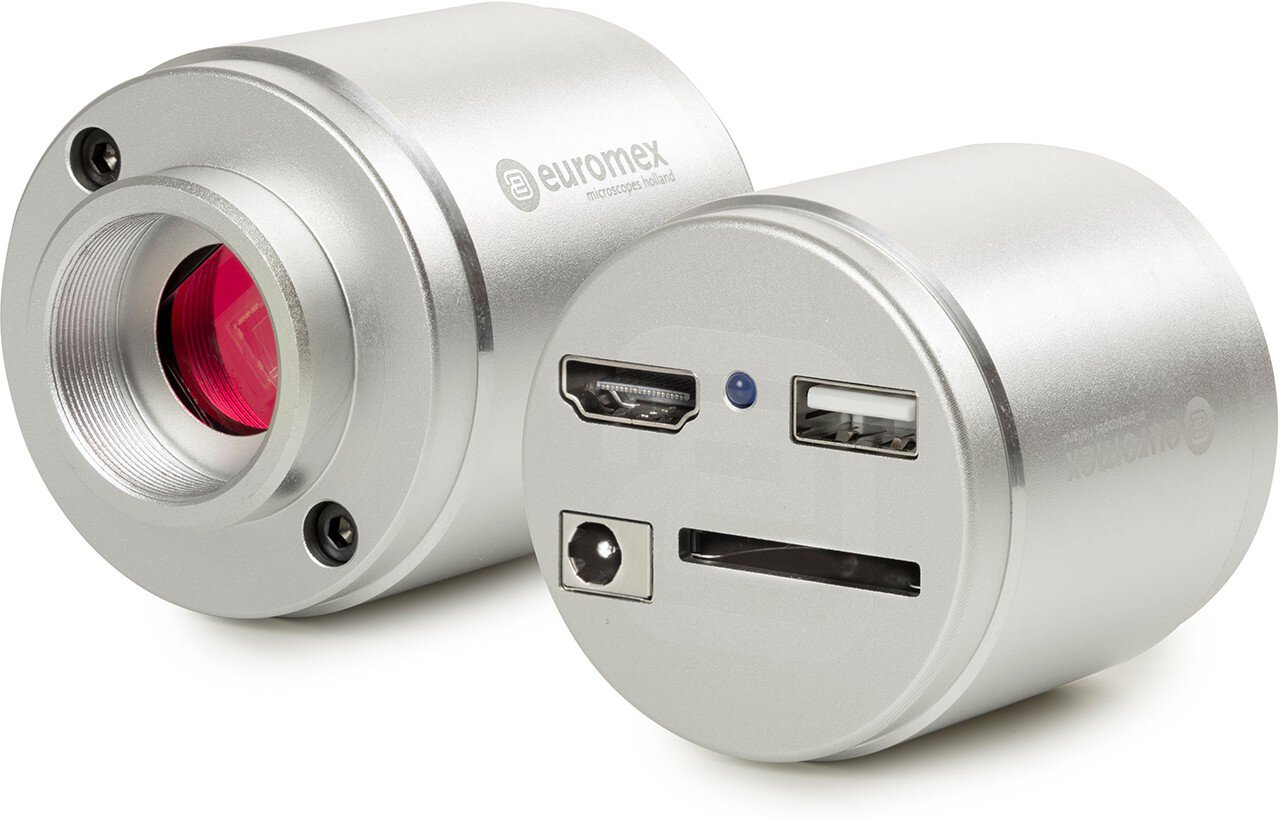

HD-Mini camera VC.3023, 1/2.8" high sensitive CMOS sensor, 1080p (up to 60fps)

The Euromex HD-Mini standalone cameras offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological-, metallurgical- or stereo microscopes. The real time images generated with these standalone cameras provide excellent color rendering at high frame rates and very user friendly! No need to open or start a computer or any computer knowledge to use these cameras. All camera settings are done automatically. This results in faster, more flexible and compact working conditions. Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with an HDMI input and the system is ready to go. The mouse-driven embedded software of the camera enables capturing images on the integrated SD memory card.

Features included in the on-screen software: Image and video Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/ Denoise/ Saturation/ Gamma/ Contrast), measurment functions

Compatibility: Suitable for all HDMI screens, monitors and beamers

Packaging: The HD-Mini VC.3023 1080p camera is supplied with a mouse, a 0.5x C-mount adapter for 23.2 mm tubes, 30.0 and 30.5 mm conversion adapters (for use with stereo microscopes), external 12V /1A power supply, 10/100 calibration slide, a 32 GB SD-card, HDMI cable and product manual.

• Sensor: HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony)
• Format: 1/2.8 inch, HDTV 1080p
• Pixels: 1920 x 1080 pixels (capture mode) / 1920 x 1080 pixels (live mode) / HDMI 60 fps
• Scan mode: Progressive scan
• Pixel size: 2.9 x 2.9 μm
• Noise: 3D Noise reduction function
• Sensitivity: 1300mv/lux-sec
• Color rendering: 12 Bits
• Signal/Noise (db): 42
• Dynamic (db): 69
• White balance: Automatic/manual/ROI
• Interface: HDMI
• Storage: Images are saved to a standard high speed 32 Gb SD memory card (Recommend using SD card of class 4 or higher and ≤128 Gb)
• Mounting: C-mount interface
• Power supply: DC 12V/ 1A adapter
• Operation: -10~ 50 Celsius, 30~80%RH
• Storage: -20~ 60 Celsius, 10~60%RH
• Supplied with: HDMI cable, DC 12V/ 1A power supply, 32 GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings
