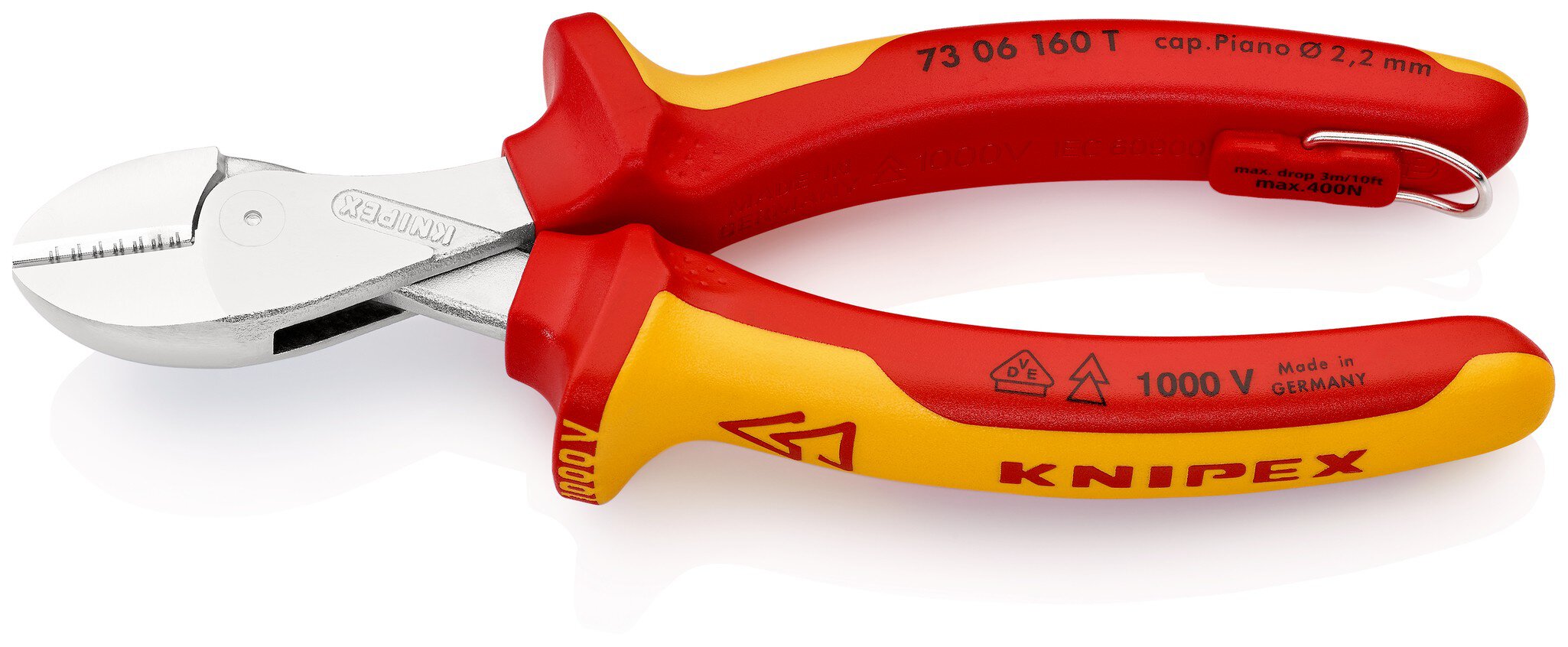

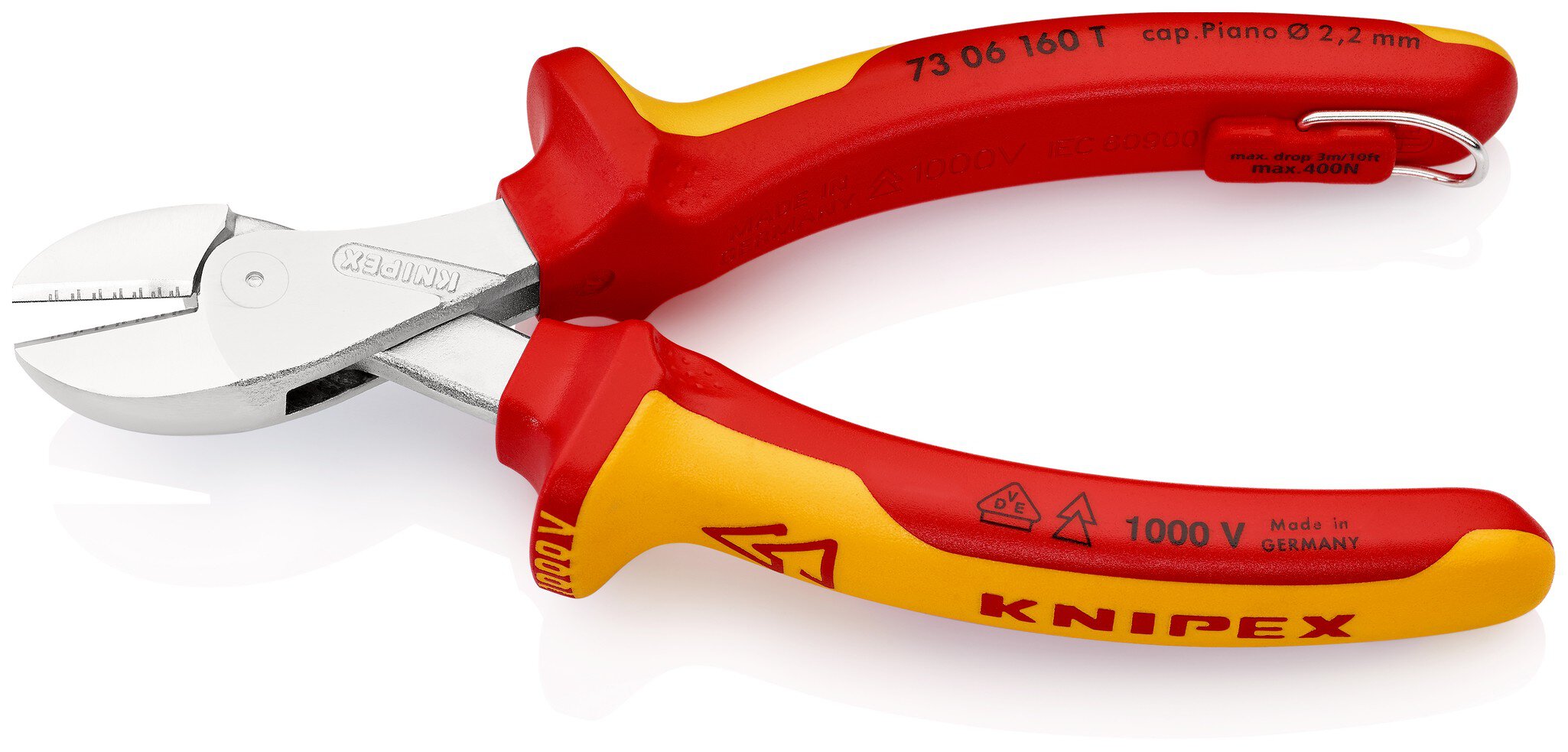

X-Cut® compact diagonal cutters, insulated, with multi-component sheaths, VDE-tested, fixing eyelet, chrome-plated, 160 mm (SB card/blister)

X-Cut® compact diagonal cutters, insulated, with multi-component sheaths, VDE-tested, fixing eyelet, chrome-plated, 160 mm (SB card/blister) #thumbnail-1

KNIPEX X-Cut® precisely cuts the finest wires as well as stranded cables and hard piano wire. Powerful, light and universal. High cutting performance with low effort due to optimum coordination of cutting edge angle and transmission ratio. Through-hole joint: maximum stability with low weight. Double-bearing joint axle for hard, permanent use. Large opening width for thicker cables. Precise cut even for fine copper wires. Compact, weight-saving design. Universally applicable, in assembly, maintenance and production. 40 % force savings compared to standard side cutters of the same length. Pliers with integrated insulated fastening eye for attaching fall protection. SB card/blister.

Item no.	WL80784
Model	73 06 160 T BK
Manufacturer	KNIPEX
Manufacturer article no.	73 06 160 T BK
Length	169 mm
Width	56 mm
Height	28 mm
Length with packaging	245 mm
Width with packaging	85 mm
Height with packaging	24 mm
Sales unit	1 piece
Content unit	1 piece
Type of packaging	blister packaging
Standards	IEC 60900
Net weight (manufacturer)	225 g
VDE	yes
Facet	Cutting edge with bevel
Joint design	Box joint
ESD compliant	no
Fastening for fall protection	ja
Isolated	yes
Tool length	160 mm
Grip (expression)	Multi-component sleeves
Cutting value copper cable, stranded (diameter)	12 mm
GPSR manufacturer data	KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
