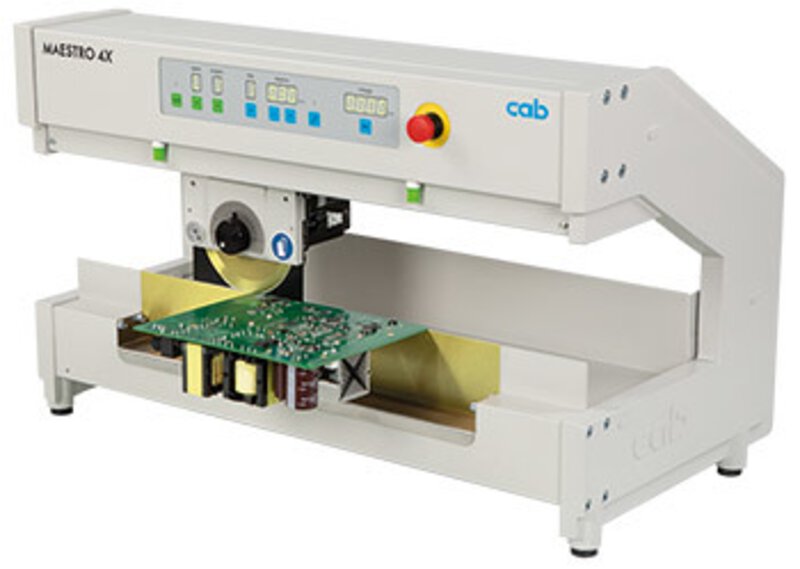

Maestro 4X/600 depaneling unit

The MAESTRO 4X enables fast, economical and user-friendly depaneling of PCBs - for both small and large formats.

Main features:

Blade distance is set via the control panel and precisely adjusted by motor
Up to nine programs can be saved and recalled at any time
The cutting length can be infinitely adjusted via limit switches
A cutting performance display supports predictive maintenance of the blades

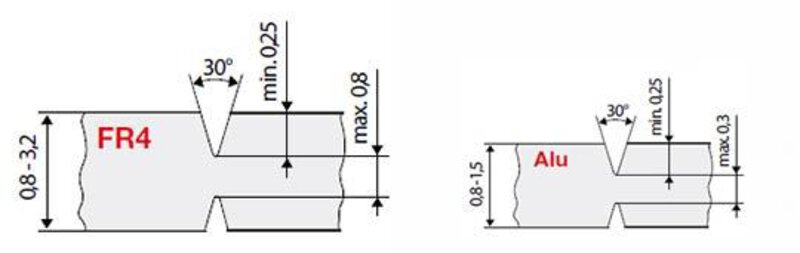

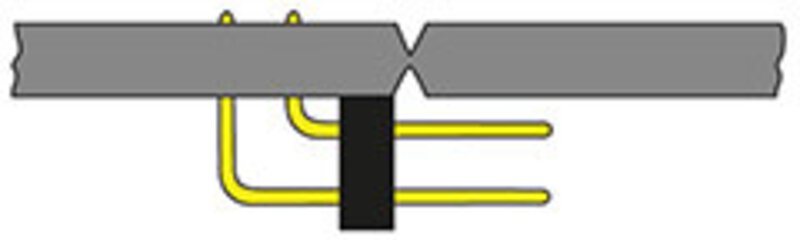

When the scoring groove is traversed once, sensitive components can be damaged by tensile and compressive stresses, especially if they are close to the groove. These stresses are significantly reduced by passing over the scoring groove twice in combination with a motorized readjustment of the blade distance. This improves the quality of the assembled PCBs sustainably and reproducibly.

• Cutting principle: placement side roller blade / solder side linear blade
• Cutting process: path-optimized, motor drive
• Cutting speed: 300, 500 mm/s, switchable
• Materials: FR4

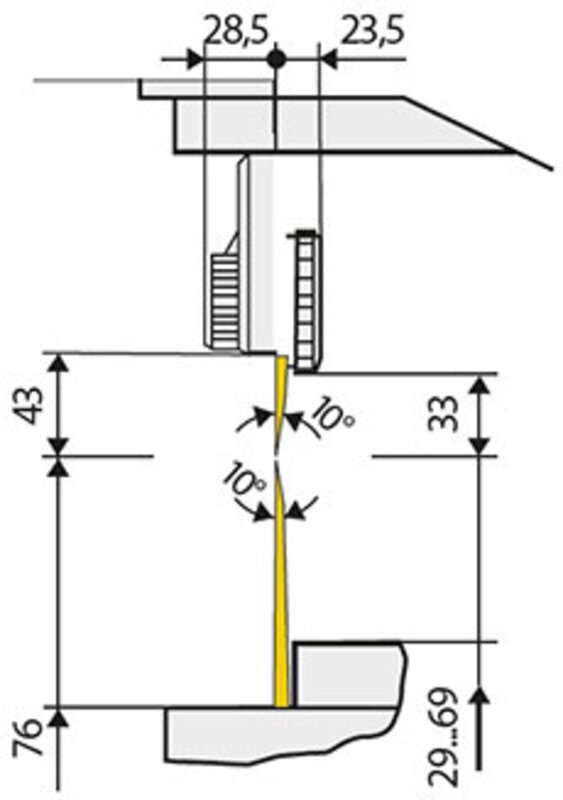

• Component height placement/soldering side: up to 76 mm
• Cut-off length: up to 600 mm
• Deposit table depth: 690 mm
• Start: Move to start position
• Programs: 9
• Cutting steps: 1-5
• Blade distance: 0.9-0.05 mm
• Key button: Unlock program selection
• Cutting distance display: up to 99 km
• DEL: Resetting the steps
• Mains switch: ON/OFF
• Foot switch: START cutting process
• Safety switch: Emergency stop
• Voltage: 100-240 VAC, 50/60 Hz
• Emission sound pressure level: LpA < 70 dB (A)
• Temperature/humidity operation: +10-35 °C / 10-85 %
• Temperature/humidity Storage: 0-60 °C / 20-80 % non-condensing
• Temperature/humidity Transport: -25-60 °C / 20-80 %
• Width x height x depth: 852 x 434 x 425 mm
• Weight: 45 kg
• Approvals: CE, FCC Class A
